DENGENSHA TOA MICRO COMBI KD-1060 KEYSHEET

Membrane Keysheet for Micro Combi KD-1060 Welding Controller | HMI Front Panel Interface

Product Name

Membrane Keysheet for Micro Combi KD-1060 Welding Controller

Part Type

Front Panel Interface Membrane Keysheet

Compatible Device

Micro Combi KD-1060 Resistance Welding Controller

Product Category

Control Panel Accessories and Welding Controller Spare Parts

Availability

In Stock. Contact to confirm lead time and shipping availability.

What is the Micro Combi KD-1060 Membrane Keysheet

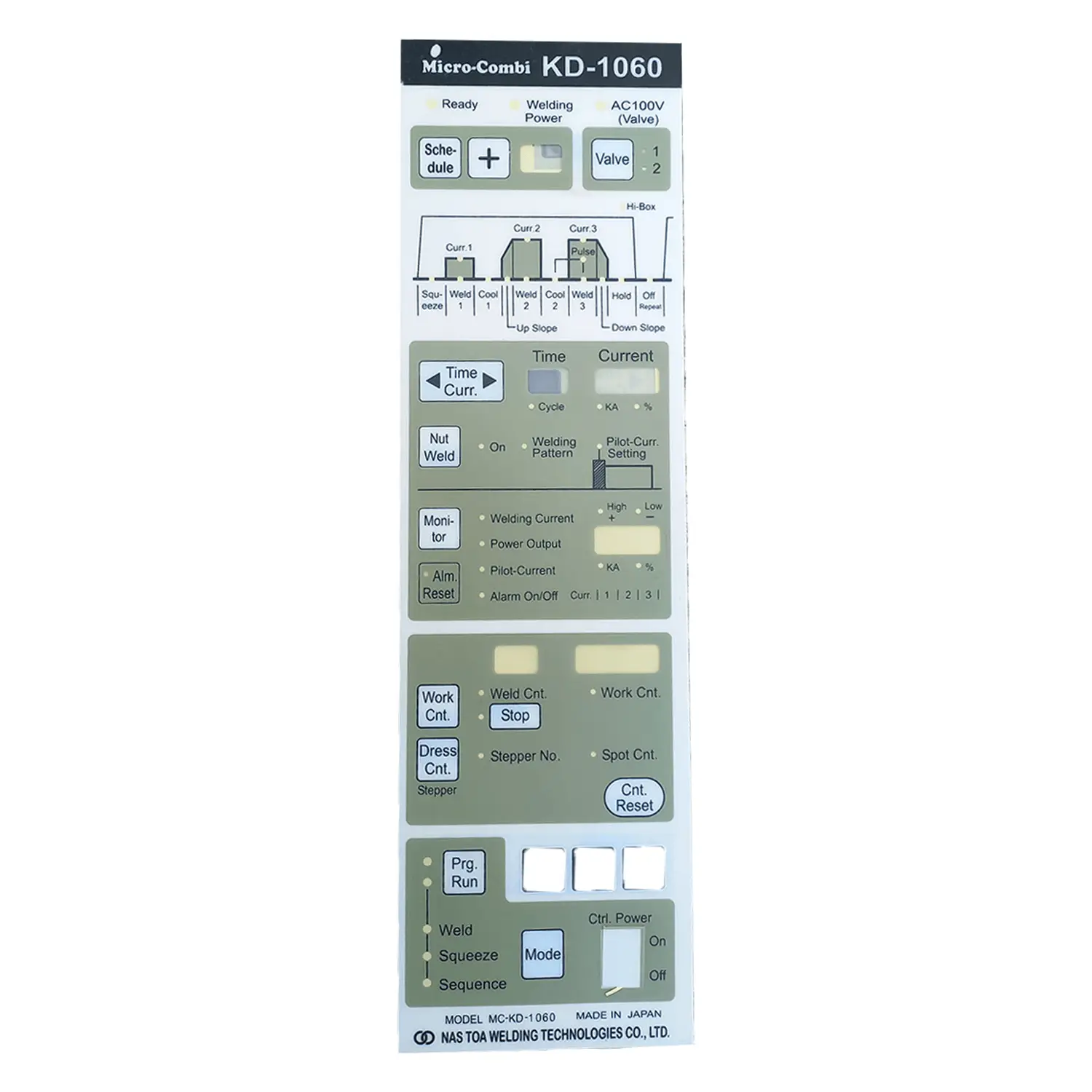

The Micro Combi KD-1060 membrane keysheet is a front panel interface overlay used to operate the KD-1060 resistance welding controller.

It acts as the human machine interface layer that allows operators to send commands to the welding controller through tactile membrane buttons.

This keysheet restores functionality to controllers with worn, damaged, or unresponsive front panels while maintaining the original layout and labeling used by the KD-1060 system.

The component is manufactured from industrial membrane material designed to withstand dust, oil exposure, and repetitive operator input common in manufacturing environments.

Technical Characteristics

Key Functional Features

OEM Layout Compatibility

The keysheet matches the original control panel layout used on the Micro Combi KD-1060 welding controller, ensuring that all key labels and button positions align with the internal controller functions.

Adhesive Back Installation

The membrane keysheet includes a self-adhesive backing that allows direct installation onto the controller panel surface after removing the damaged or worn overlay.

Durable Membrane Construction

Industrial membrane material provides resistance against dust, oil, abrasion, and repeated button activation cycles typical in manufacturing environments.

Tactile Operator Interface

The membrane key design allows operators to receive tactile feedback when pressing control buttons, improving accuracy during welding parameter adjustments.

High Visibility Key Labels

Printed legends on the keysheet ensure operators can clearly identify control functions, which helps reduce operational errors during production.

How Membrane Keysheet Interfaces Work

A membrane keysheet functions as the user interaction layer of a control system.

In welding controllers:

1. The operator presses a labeled membrane key.

2. The key activates an electrical contact beneath the membrane layer.

3. The controller receives the input signal.

4. The controller executes the corresponding welding parameter command.

This design protects the electronics while allowing easy operator interaction.

Typical Applications

Resistance Welding Controllers

Membrane keysheets are commonly used on welding controllers where operators adjust weld parameters, cycle timing, and operational settings.

Automotive Manufacturing

Resistance welding systems used in automotive assembly lines often require durable operator interfaces that can withstand repetitive use.

Metal Fabrication Facilities

Fabrication shops rely on welding controller interfaces to manage production welding processes.

Robotic Welding Cells

Automated welding cells use controllers with membrane interfaces for system configuration and maintenance operations.

Installation Process

Removing the Existing Keysheet

Remove the damaged or worn keysheet from the controller front panel.

Surface Preparation

Clean the panel surface to remove adhesive residue, dust, or oil contamination.

Applying the Replacement Keysheet

Align the new keysheet with the controller panel layout and apply pressure to secure the adhesive backing.

No electrical modification or additional calibration is required.

Important Product Note

This product listing includes only the membrane keysheet.

The following items are not included:

• welding controller unit

• internal controller electronics

• control panel housing

This component is intended as a replacement interface overlay for the KD-1060 controller.

Frequently Asked Questions

Is this the full Micro Combi KD-1060 welding controller

No. This product is the membrane keysheet replacement used on the front panel of the KD-1060 controller.

Is the keysheet compatible with other welding controllers

This keysheet is specifically designed for the Micro Combi KD-1060 welding controller and may not fit other controller models.

What material is used in the keysheet

The keysheet is made from industrial membrane material designed to resist dust, oil exposure, and mechanical wear in factory environments.

Can the keysheet be installed without special tools

Yes. The keysheet uses an adhesive backing and can be installed by aligning and pressing it onto the cleaned controller panel surface.

Maintenance Benefits

Replacing a worn membrane keysheet provides several operational advantages:

• restores clear control panel labeling

• improves operator input accuracy

• reduces downtime caused by faulty control buttons

• extends the service life of the welding controller
