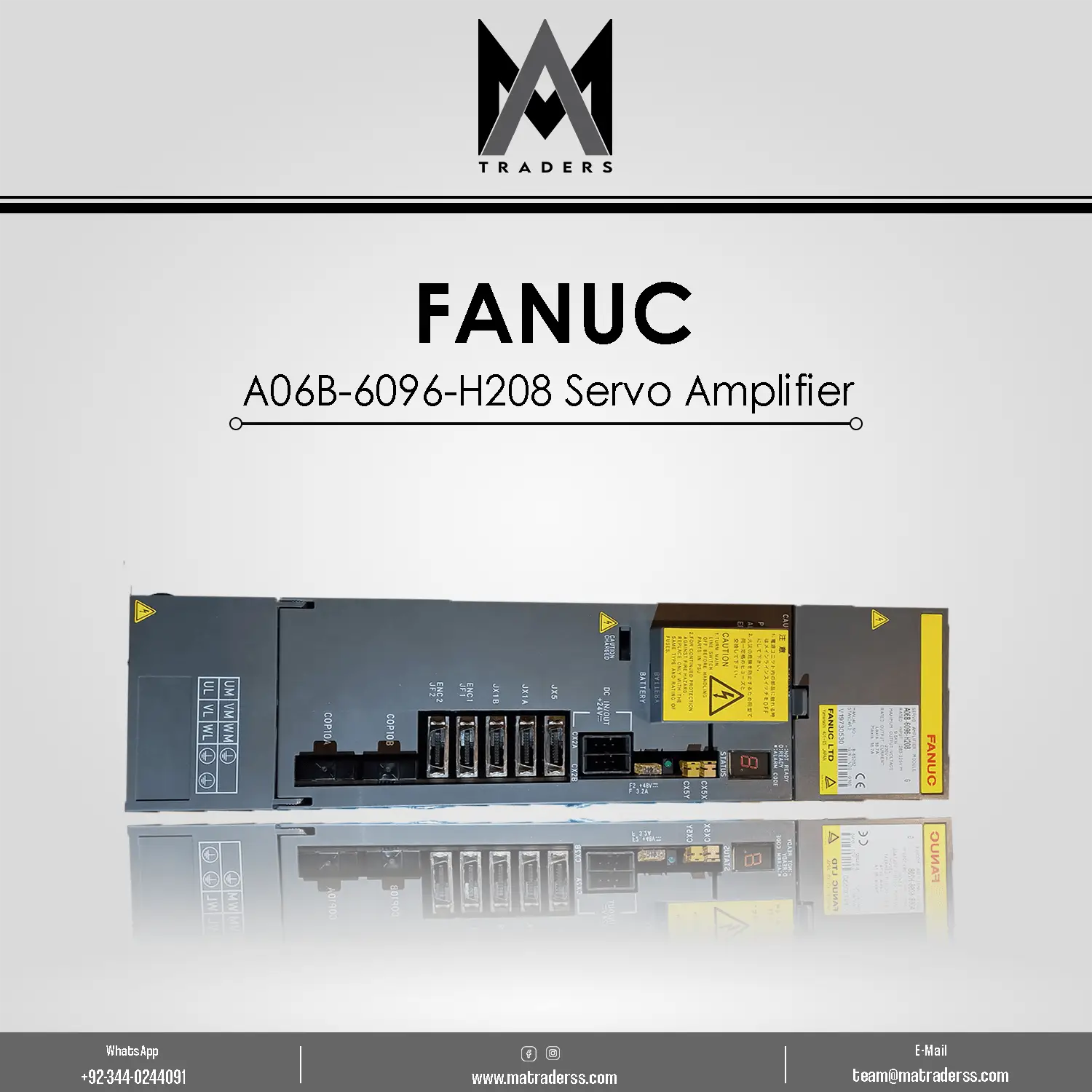

The FANUC A06B-6096-H208 Servo Amplifier is a CNC drive module designed to control servo motors in high-precision machining systems. It belongs to the FANUC Alpha Series digital servo amplifier family and is commonly used in CNC lathes, milling machines, and automated production systems.
The amplifier regulates motor torque, speed, and position to ensure accurate axis movement and stable machine operation. It integrates with compatible FANUC CNC controllers and supports multi-axis motion control in industrial environments.
This module is often used as a replacement servo amplifier for existing FANUC systems to restore drive performance and maintain production continuity.
FANUC
A06B-6096-H208
CNC Servo Drives and Amplifiers
New
Refurbished
Used
In Stock with international shipping available
The amplifier regulates servo motor movement to maintain accurate position control and smooth axis motion during machining operations.
The system supports regenerative braking, allowing energy produced during deceleration to be reused or safely dissipated.
Designed for use with FANUC Alpha Series CNC architectures and compatible machine control systems.

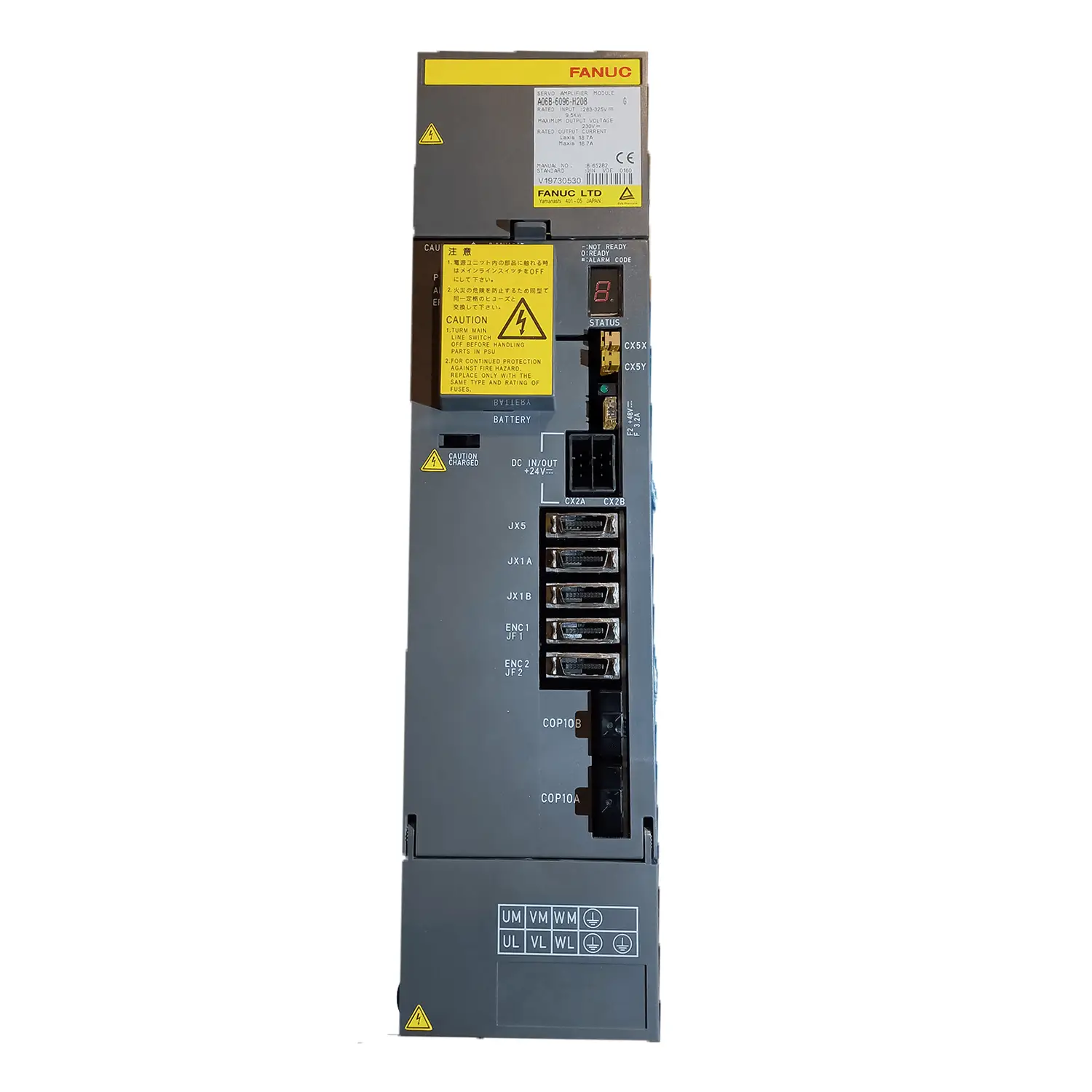

LED indicators and diagnostic codes assist technicians in identifying faults and monitoring system status.
The unit is engineered to operate in demanding manufacturing environments that include vibration, heat, and continuous duty cycles.
| Parameter | Value |
|---|---|

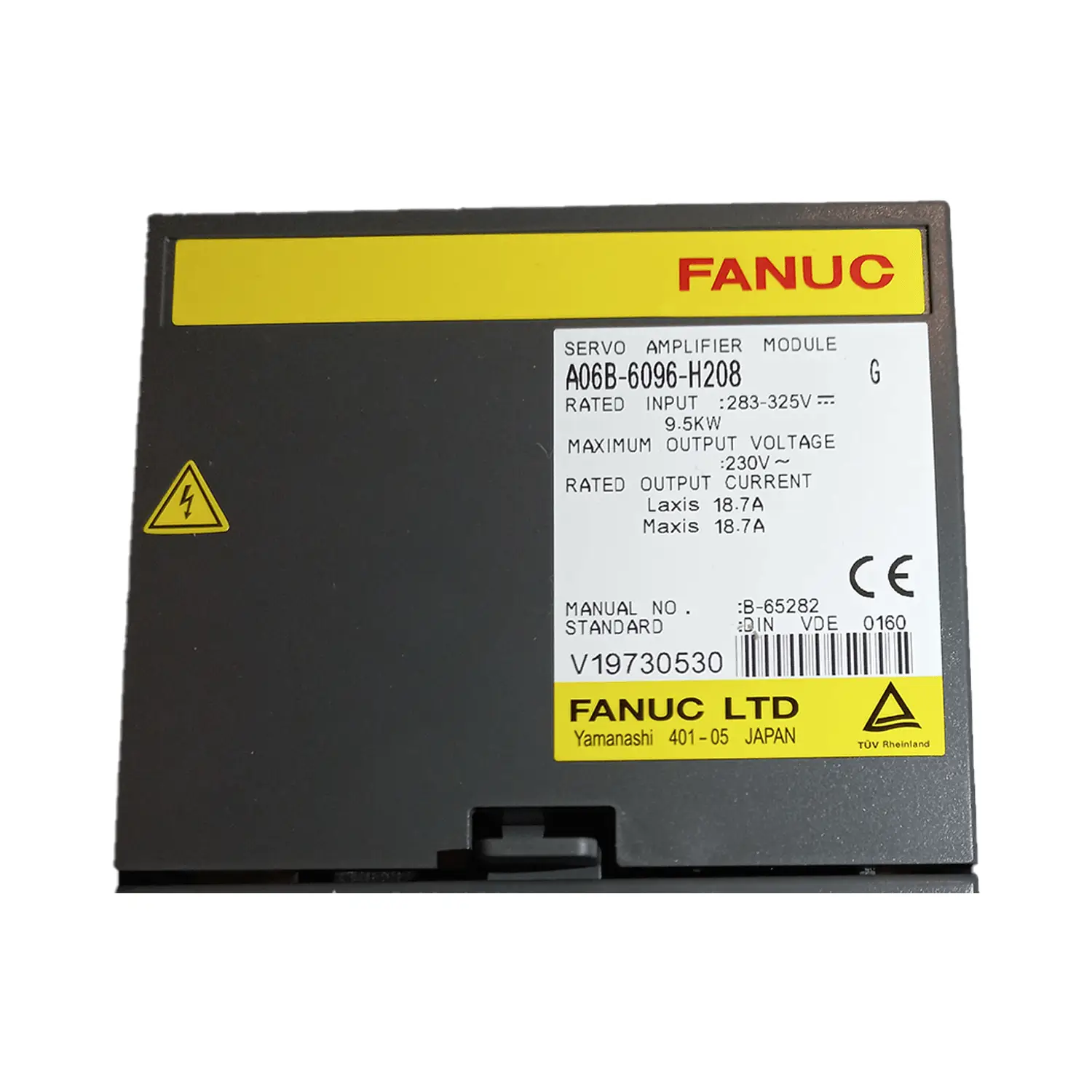

| Model Number | A06B-6096-H208 |
| Input Voltage | 200–240V AC Three Phase |
| Output Configuration | Dual Axis Servo Output |
| Typical Output Current | Approx. 20A per axis |
| Control Type | FANUC Alpha Series Digital Servo |
| Cooling Method | Fan Cooled with Thermal Protection |
| Operating Temperature | 0°C to 55°C |
| Mounting Orientation | Vertical Panel Mount |
| Weight | Approx. 5.5 kg |
The A06B-6096-H208 amplifier is typically used with FANUC controllers such as:
Used in many modern CNC milling and turning machines.
Common in industrial machining centers and production lines.
Used for advanced CNC control in complex machining operations.
Often integrated into high-precision automated manufacturing systems.
Machine compatibility should always be verified before installation.
Used to control servo motors responsible for axis movement in milling, turning, and grinding machines.
Supports robotic systems and automated assembly lines that require precise multi-axis motion control.
Used in machining processes requiring high positional accuracy and repeatability.
Provides servo drive control for coordinated robotic movement and automated production equipment.
The A06B-6096-H208 is often installed as a replacement drive for existing FANUC Alpha Series servo amplifiers.
Installation should be performed by a qualified technician to ensure:
proper electrical connection
correct axis configuration
safe system testing after replacement
Unused unit supplied in original or factory condition with warranty coverage.
Professionally inspected, tested, and restored unit with verified performance.
Previously operated unit tested for basic functionality and suitable for maintenance replacement.

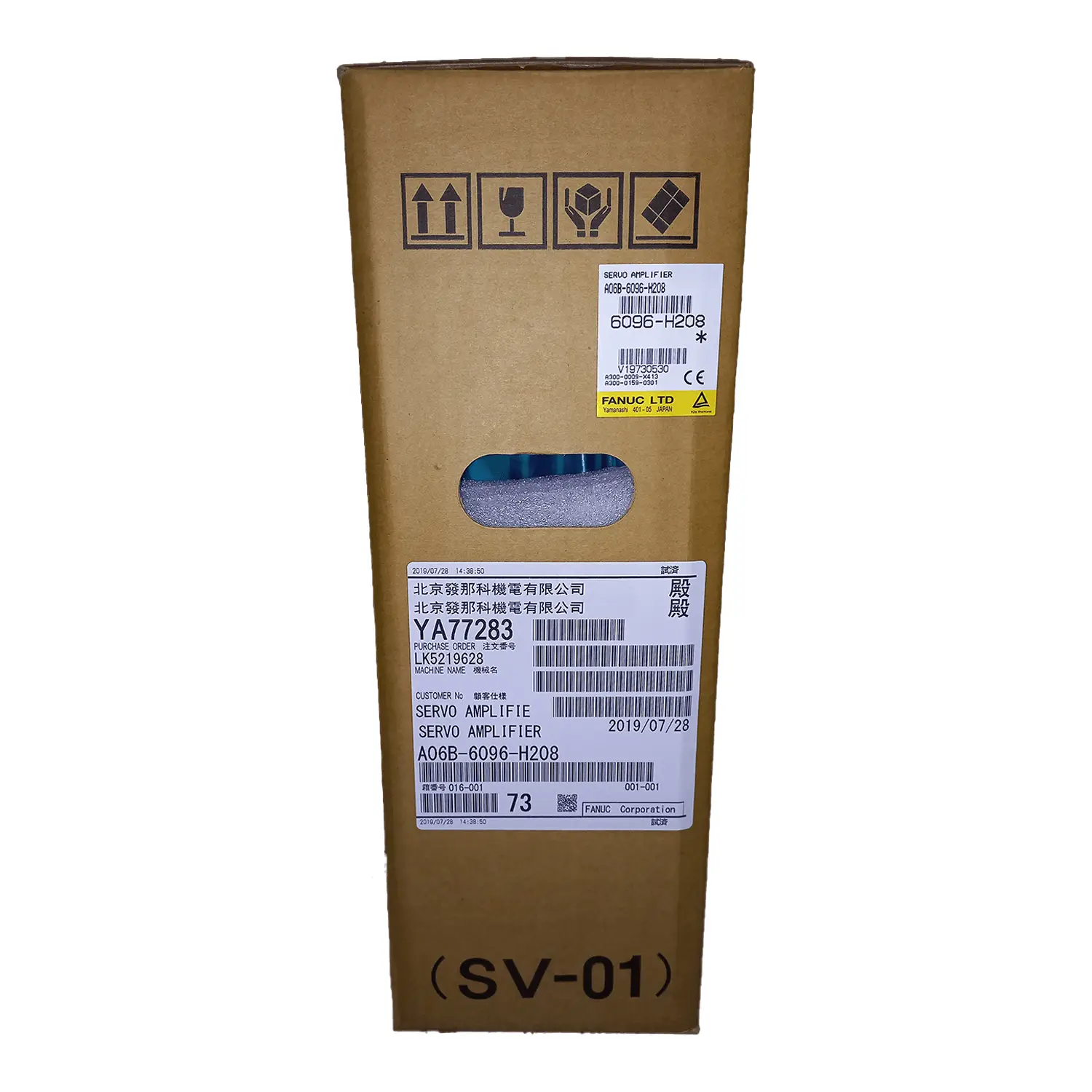

1 × FANUC A06B-6096-H208 Servo Amplifier
documentation or installation pinout information upon request
condition-specific warranty and technical support
Yes. The amplifier is part of the FANUC Alpha Series and is commonly used with controllers such as FANUC 0i, 16i, 18i, and 21i systems. Compatibility should always be verified with the specific machine model.
In most cases the amplifier functions as a direct replacement module. However system verification and parameter checks are recommended after installation.
New units have never been used and typically include full warranty coverage.
Refurbished units are cleaned, tested, and restored to operational condition.
Used units are tested for functionality and often selected for cost-effective repairs.
