FANUC A66L-2050-0025#B PCMCIA Connector

FANUC A66L-2050-0025#B PCMCIA Card Slot Connector | CNC Memory Interface for 16i 18i 21i Controls

Product Name

FANUC A66L-2050-0025#B PCMCIA Card Slot Connector

Part Number

A66L-2050-0025#B

Product Category

CNC Control Board Accessories and Data Storage Interfaces

Compatibility

FANUC 16i, 18i, 21i Series and compatible CNC control systems

Availability

In Stock. Contact to confirm current lead time and delivery options.

What is the FANUC A66L-2050-0025#B PCMCIA Card Slot Connector

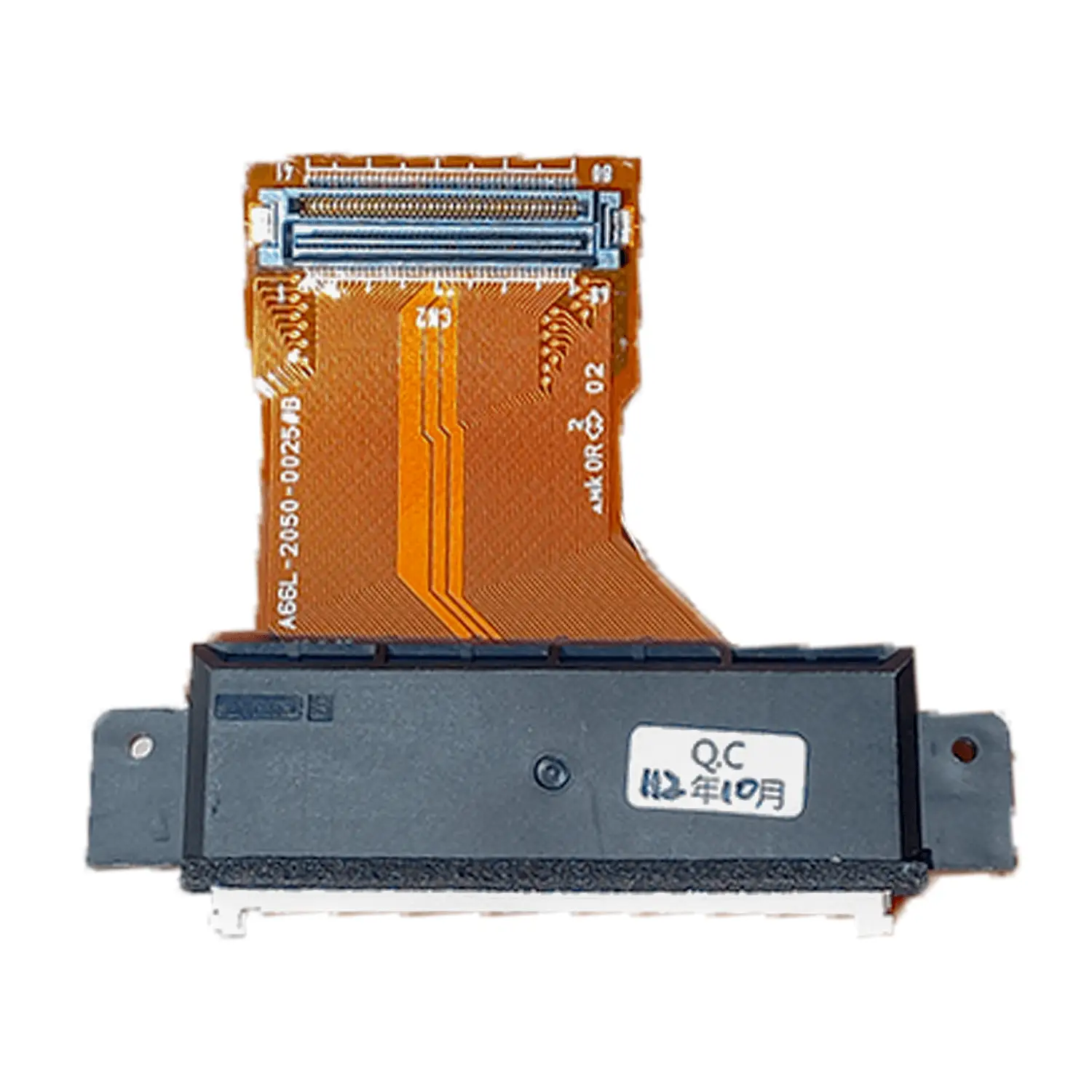

A66L-2050-0025#B is a PCMCIA card slot connector used in FANUC CNC control systems to enable external memory access for program storage, parameter backup, and data transfer.

This component provides a physical interface between the CNC control board and a PCMCIA memory card or CompactFlash card using a PCMCIA adapter. The interface allows CNC machines to read and write machining programs, system parameters, and diagnostic files.

The connector is commonly used in FANUC 16i, 18i, and 21i series CNC controllers, where external memory is required for transferring large machining programs or maintaining system backups.

The unit includes a ribbon cable connection for internal installation inside the CNC control cabinet.

Technical Specifications

Key Functional Features

PCMCIA Memory Interface

The connector provides a PCMCIA slot that allows CNC machines to connect external memory cards for data storage and transfer.

CompactFlash Card Support

When used with a PCMCIA to CompactFlash adapter, the interface allows CNC systems to read CF cards for program storage and backup.

Ribbon Cable Connectivity

The integrated flat ribbon cable connects the slot to the CNC control board, allowing stable internal communication with the controller.

OEM Replacement Design

The connector is designed to match the physical and electrical specifications used in FANUC CNC control systems.

Reliable Data Handling

A secure connection ensures reliable reading and writing of machine programs, system parameters, and diagnostic data.

How PCMCIA Interfaces Work in CNC Machines

PCMCIA memory interfaces allow CNC machines to interact with removable storage devices.

During operation:

1. A PCMCIA card or CF adapter is inserted into the slot.

2. The CNC controller accesses the memory card through the connector.

3. Machining programs or system data are read from or written to the card.

4. Operators can transfer data between the CNC machine and external computers.

This method allows technicians to store large machining programs and perform system backups efficiently.

Typical Applications

CNC Program Storage

Memory cards connected through the PCMCIA interface allow CNC machines to store large G-code programs used in machining operations.

System Parameter Backup

Technicians can back up machine parameters and configuration files to external memory devices.

Machine Maintenance and Diagnostics

Maintenance engineers use memory interfaces to transfer diagnostic data and update CNC software.

CNC Retrofit Projects

Older CNC machines often require replacement PCMCIA connectors to restore memory functionality.

Compatibility

Supported FANUC CNC Series

The A66L-2050-0025#B connector is commonly used in:

• FANUC 16i Series CNC controls

• FANUC 18i Series CNC controls

• FANUC 21i Series CNC controls

Compatibility with other FANUC systems should be verified using the machine documentation.

Frequently Asked Questions

Can this connector read CompactFlash cards directly

Yes. When used with a PCMCIA-to-CompactFlash adapter, the connector allows the CNC machine to access CF cards for file transfers.

Is this an original FANUC component

The A66L-2050-0025#B follows the specifications used in FANUC CNC control systems and is designed as an OEM-compatible replacement part.

Can it be used with CNC models other than 16i 18i or 21i

Some other FANUC models may support PCMCIA interfaces, but compatibility should be verified based on the specific CNC control configuration.

Does installation require soldering

No. The connector is designed for internal board mounting using a ribbon cable interface.

Industrial Use Benefits

Replacing a damaged PCMCIA connector helps restore important CNC functions such as:

• reliable program transfer

• secure parameter backup

• efficient data storage

• stable external memory connectivity

These functions are essential for maintaining operational efficiency in CNC machining environments.
