FANUC A86L-0001-0290#A Softkey

FANUC A86L-0001-0290#A CNC Softkey | Operator Panel Replacement Button

Product Name

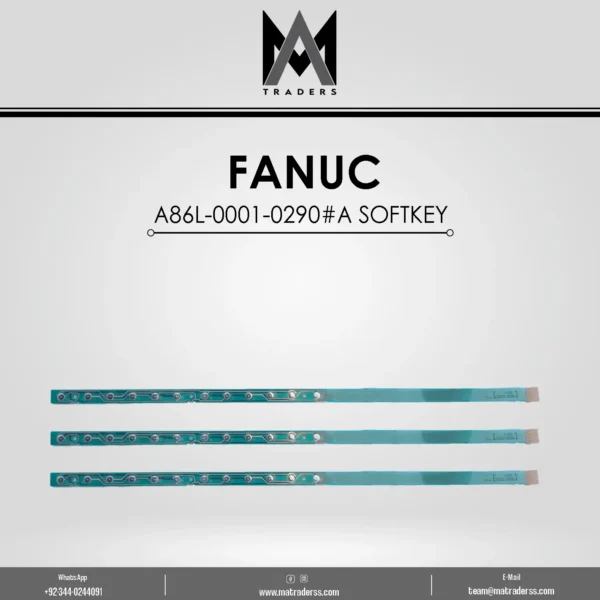

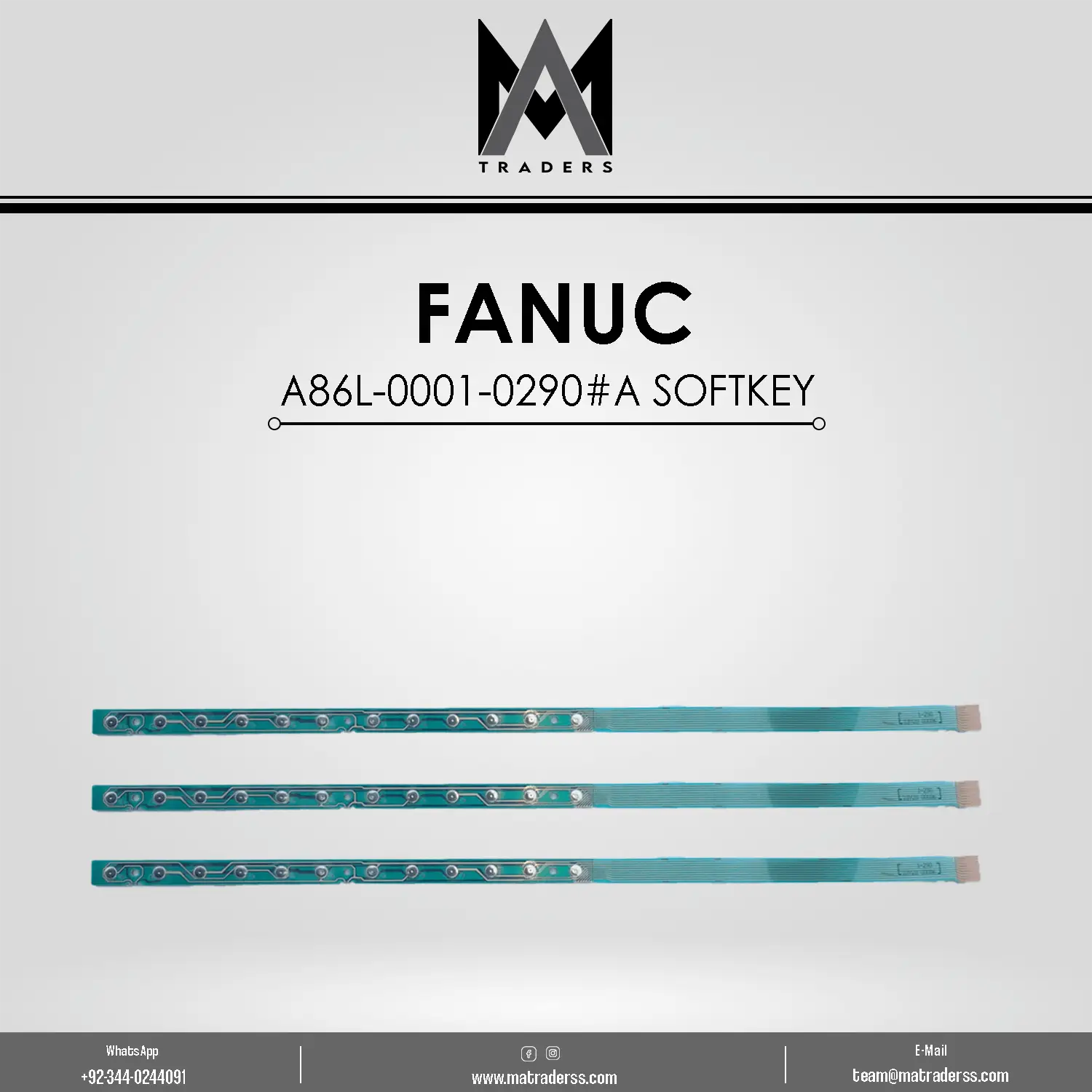

FANUC A86L-0001-0290#A CNC Softkey

Part Number

A86L-0001-0290#A

Product Category

CNC Operator Panel Components and Softkeys

Brand

FANUC

Condition

New OEM Part

Availability

In Stock. Ships globally.

What is the FANUC A86L-0001-0290#A Softkey

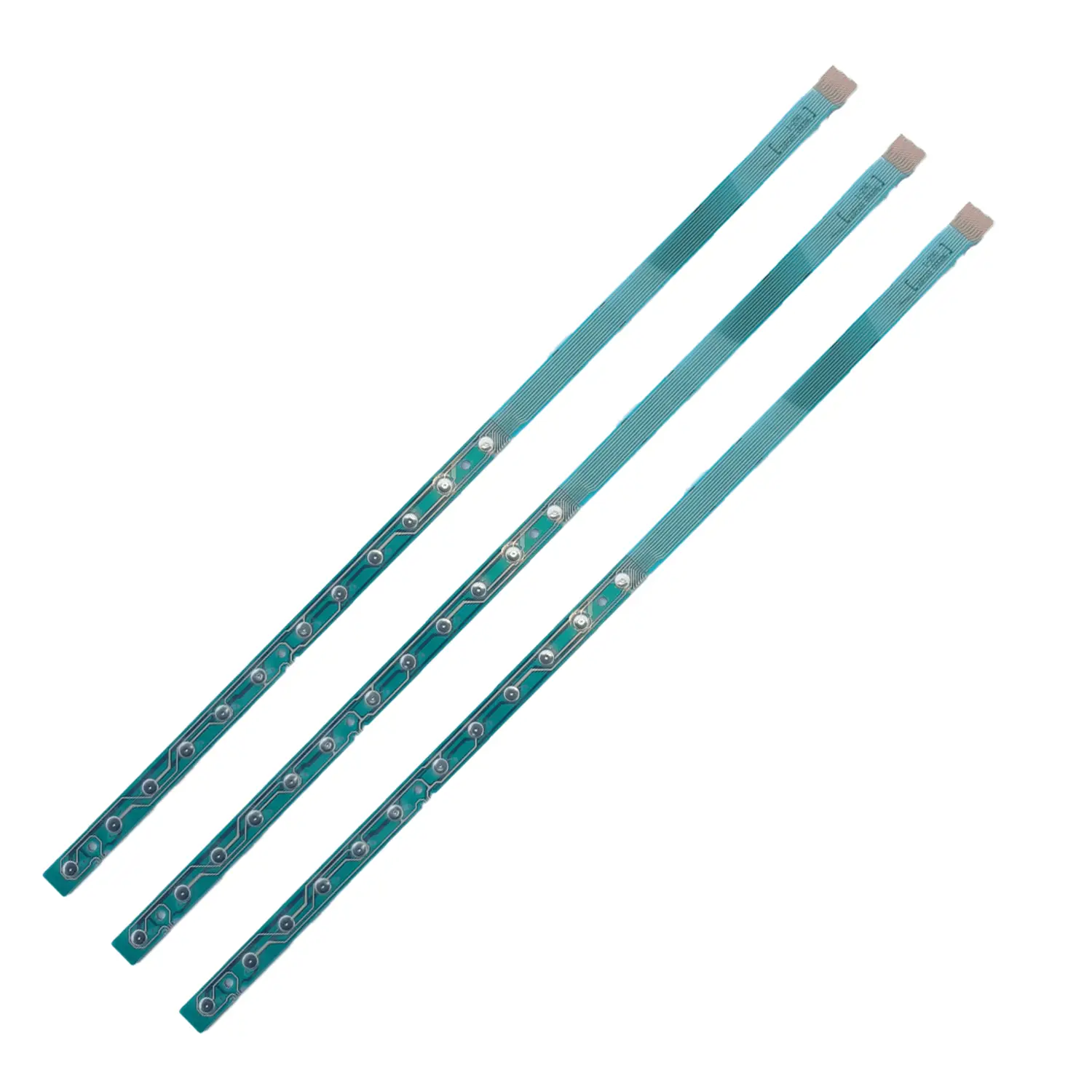

A86L-0001-0290#A is a replacement softkey used on FANUC CNC operator panels to allow machine operators to navigate menus and execute control commands.

Softkeys are physical buttons located on the CNC control interface. They enable operators to select menu options, adjust machine parameters, and control system functions within the CNC control software.

The FANUC A86L-0001-0290#A softkey is manufactured to match the original operator panel design and provides reliable tactile input for daily machine operation.

Replacing worn or damaged softkeys helps restore accurate operator input and maintains the usability of the CNC control interface.

Technical Specifications

Key Functional Features

OEM Operator Panel Compatibility

The softkey is designed to match the original FANUC operator panel layout and ensures proper alignment with internal control switches.

Durable Silicone Rubber Construction

The key is made from industrial-grade silicone rubber, providing flexibility, durability, and resistance to oils and contaminants commonly found in machining environments.

Tactile Button Response

The softkey provides clear tactile feedback during operation, allowing operators to confirm input commands while navigating CNC menus.

Quick Snap-In Installation

The snap-in design allows the softkey to be replaced quickly without soldering or complex panel modifications.

Protection for Control Panel Interface

Replacing worn softkeys helps maintain the integrity of the CNC operator panel and prevents incorrect input caused by damaged buttons.

How CNC Softkeys Work

Softkeys are part of the human machine interface used in CNC control systems.

During operation:

1. The operator presses a softkey on the control panel.

2. The key activates a switch or contact beneath the button.

3. The control panel electronics register the input.

4. The CNC control system executes the selected command.

This interface allows operators to interact with machine functions and control software.

Typical Applications

CNC Machine Operator Panels

Softkeys are used on CNC control panels to allow operators to navigate menus and control machine functions.

CNC Machine Maintenance

Replacing worn softkeys restores accurate button response on frequently used operator panels.

Control Panel Refurbishment

Maintenance teams often replace softkeys during refurbishment of older CNC machines.

Industrial Automation Systems

Automation control panels use softkeys for operator input and system configuration.

Compatibility

The A86L-0001-0290#A softkey is designed for specific FANUC CNC operator panels.

Before installation, compatibility should be verified by checking:

• CNC machine documentation

• operator panel model number

• original component part number

Frequently Asked Questions

Is the A86L-0001-0290#A compatible with all FANUC machines

No. This softkey is designed for specific FANUC operator panels. Always verify compatibility using the machine documentation or panel part number.

Can the softkey be installed without special tools

Yes. The snap-in design allows the softkey to be installed without soldering or specialized tools.

What material is used in the softkey

The key is made from industrial-grade silicone rubber designed to resist oil, dust, and mechanical wear.

Why should worn softkeys be replaced

Replacing worn softkeys restores accurate operator input, improves control panel usability, and prevents incorrect machine commands.

Industrial Use Benefits

Replacing worn operator panel softkeys provides several operational advantages:

• improved input accuracy

• better tactile response for operators

• extended lifespan of CNC control panels

• reduced machine downtime during maintenance

These benefits help maintain reliable CNC machine operation in industrial environments.
