FANUC A98L-0001-0646#C Membrane Keysheet

FANUC A98L-0001-0646#C CNC Membrane Keysheet | Control Panel HMI Overlay

Product Name

FANUC A98L-0001-0646#C CNC Membrane Keysheet

Part Number

A98L-0001-0646#C

Product Category

CNC Control Panel Components and HMI Keysheet Covers

Brand

FANUC

Availability

In Stock. Ready to ship. Contact for shipping and delivery confirmation.

What is the FANUC A98L-0001-0646#C CNC Membrane Keysheet

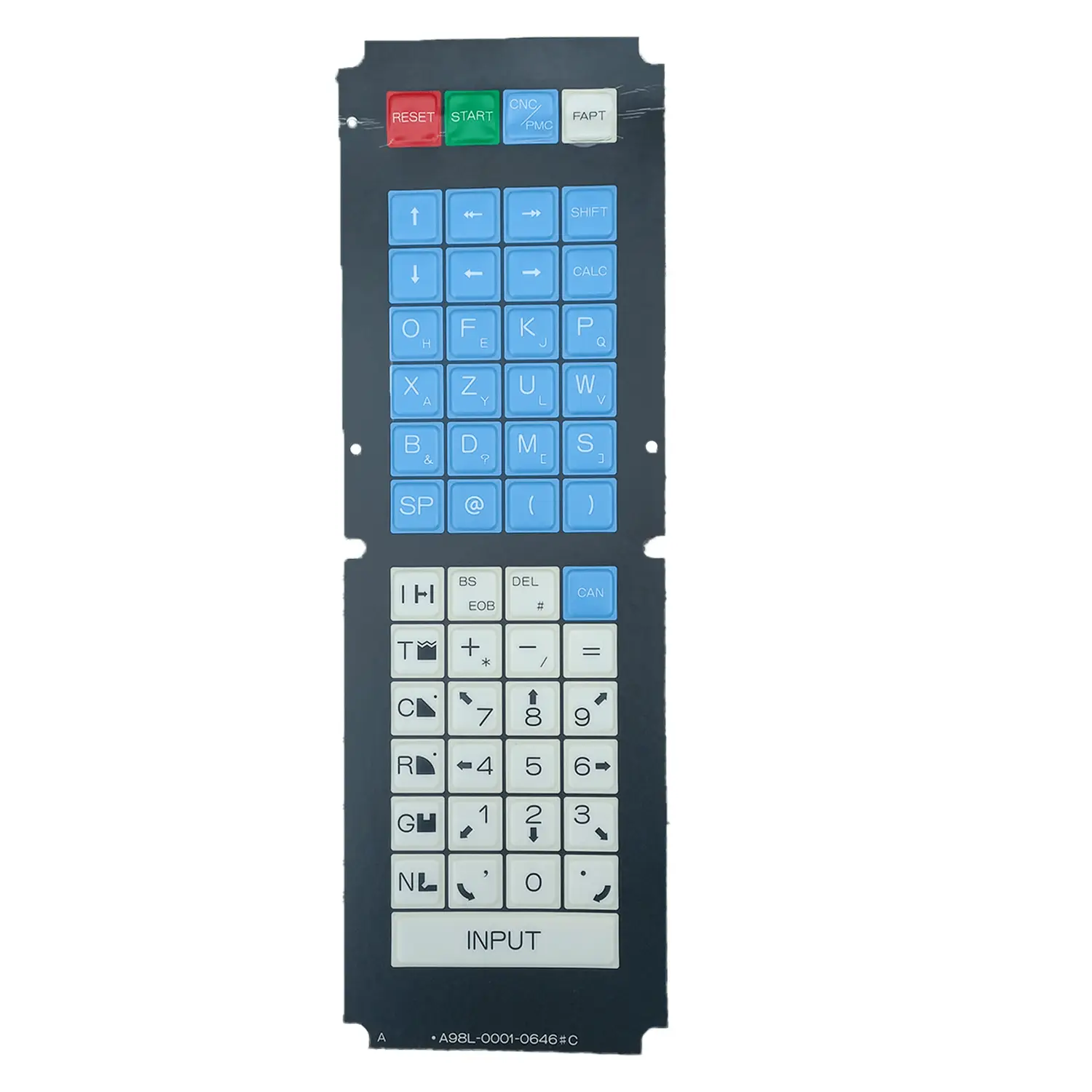

A98L-0001-0646#C is a membrane keysheet used as the human machine interface overlay on FANUC CNC control panels.

The keysheet forms the outer interface layer of the CNC control panel, allowing machine operators to interact with the system through labeled membrane buttons.

Membrane keysheets protect internal electronic circuits while providing tactile feedback for machine operation. When a key is pressed, the membrane interface activates electrical contacts beneath the panel that transmit commands to the CNC controller.

This replacement keysheet restores the functionality and visual clarity of worn or damaged control panels used in industrial CNC machines.

Technical Specifications

Key Functional Features

OEM-Compatible Design

The keysheet is manufactured to match the layout and button labeling used in compatible FANUC CNC control panels.

Industrial Grade Membrane Material

The polyester laminate construction provides resistance against oil, dust, moisture, and mechanical wear typically found in machining environments.

Responsive Tactile Interface

Membrane keys allow operators to feel button activation during use, improving input accuracy when controlling CNC machine functions.

Protective Interface Layer

The keysheet protects internal control panel circuitry from contamination while maintaining clear button labeling for operator interaction.

Quick Replacement Process

The adhesive-backed design allows maintenance teams to replace worn keysheets without replacing the entire control panel assembly.

How CNC Membrane Keysheet Interfaces Work

Membrane keysheets act as the external control interface for CNC machines.

During machine operation:

1. The operator presses a labeled key on the membrane surface.

2. The membrane layer activates a contact switch beneath the panel.

3. The control signal is transmitted to the CNC controller.

4. The CNC system performs the requested command.

This interface system allows reliable operator control while protecting internal electronics.

Typical Applications

CNC Machine Control Panels

Membrane keysheets are installed on the front panel of CNC controllers used in machining centers and turning machines.

CNC Machine Refurbishment

Replacing worn keysheets restores usability and visual clarity of older CNC control panels.

Preventive Maintenance

Maintenance teams replace damaged keysheets to maintain safe and accurate machine operation.

Industrial Automation Panels

Membrane interfaces are commonly used on machine operator panels where sealed controls are required.

Compatibility

FANUC CNC Control Panels

The A98L-0001-0646#C membrane keysheet is designed for use with compatible FANUC CNC control panel models.

Compatibility should always be confirmed using the machine model or control panel reference number.

Installation Process

Removing the Existing Keysheet

Carefully remove the worn or damaged keysheet from the CNC control panel.

Preparing the Panel Surface

Clean the panel surface to remove adhesive residue, oil, or dust contamination.

Installing the Replacement Keysheet

Align the new keysheet with the panel layout and press firmly to secure the adhesive backing or install within the panel frame.

Important Product Note

This product includes the membrane keysheet only.

The following components are not included:

• internal keypad electronics

• control panel housing

• CNC controller hardware

This product is intended as a replacement interface overlay.

Frequently Asked Questions

Will this keysheet work with all FANUC CNC machines

No. Compatibility depends on the specific FANUC control panel model. Always confirm the part number and machine configuration before installation.

Is this a complete keypad assembly

No. This product is the membrane keysheet overlay and does not include the internal keypad electronics.

What material is used in the keysheet

The keysheet is manufactured from industrial grade polyester laminate designed for durability in machining environments.

How is the keysheet installed

The keysheet can be installed by removing the old interface, cleaning the panel surface, and applying the replacement keysheet using the adhesive backing or mounting frame.

Industrial Use Benefits

Replacing a worn CNC membrane keysheet helps maintain:

• clear operator interface visibility

• accurate machine input commands

• protection of internal control electronics

• reliable operation of CNC machines

These benefits support efficient machine operation in industrial manufacturing environments.
