FANUC A98L-0005-0298#T Membrane Keyboard Cover

FANUC A98L-0005-0298#T CNC Membrane Keysheet | Control Panel HMI Overlay

Product Name

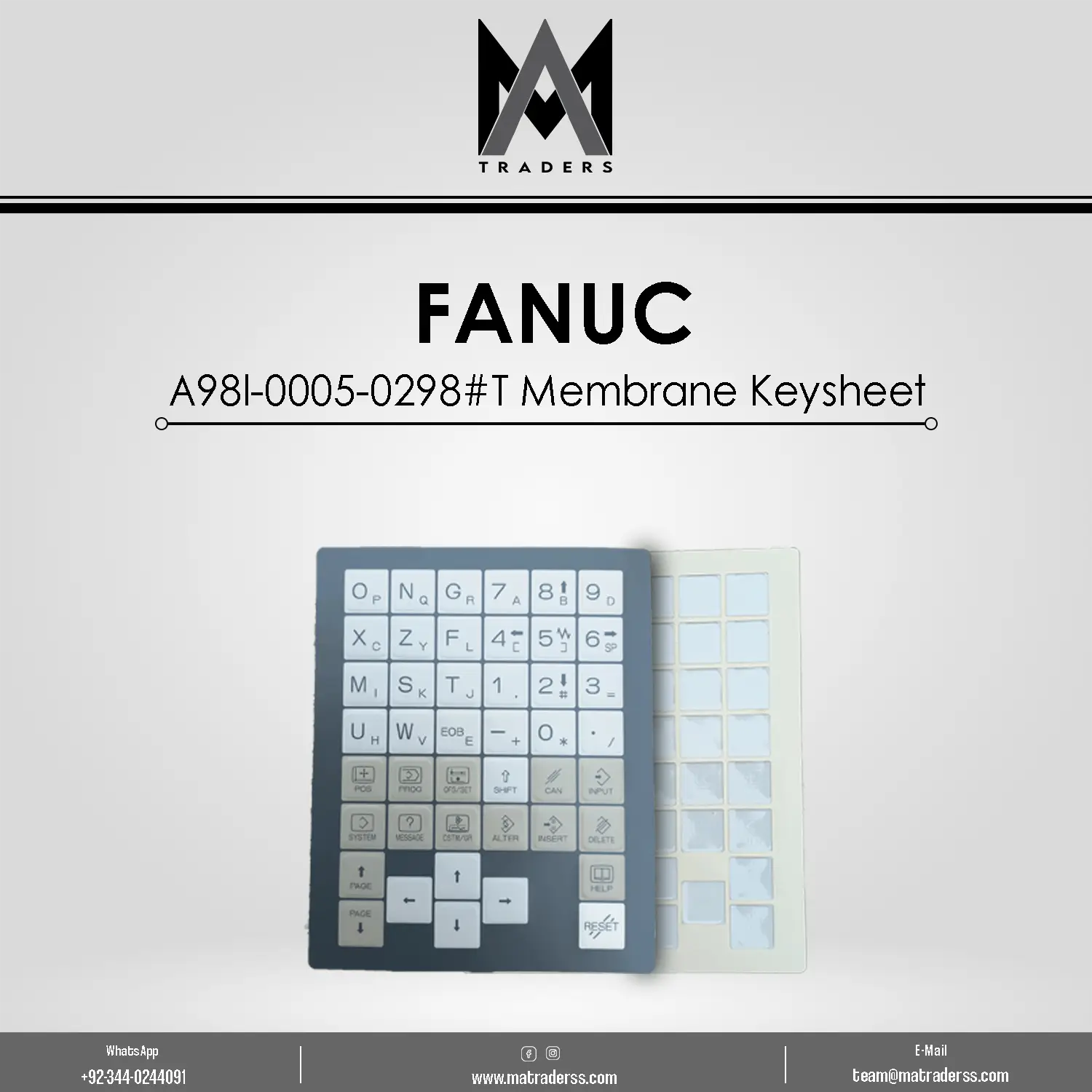

FANUC A98L-0005-0298#T CNC Membrane Keysheet

Part Number

A98L-0005-0298#T

Product Category

CNC Control Panel Accessories and HMI Keysheet Overlays

Brand

FANUC

Condition

New

Availability

In Stock. Global shipping available.

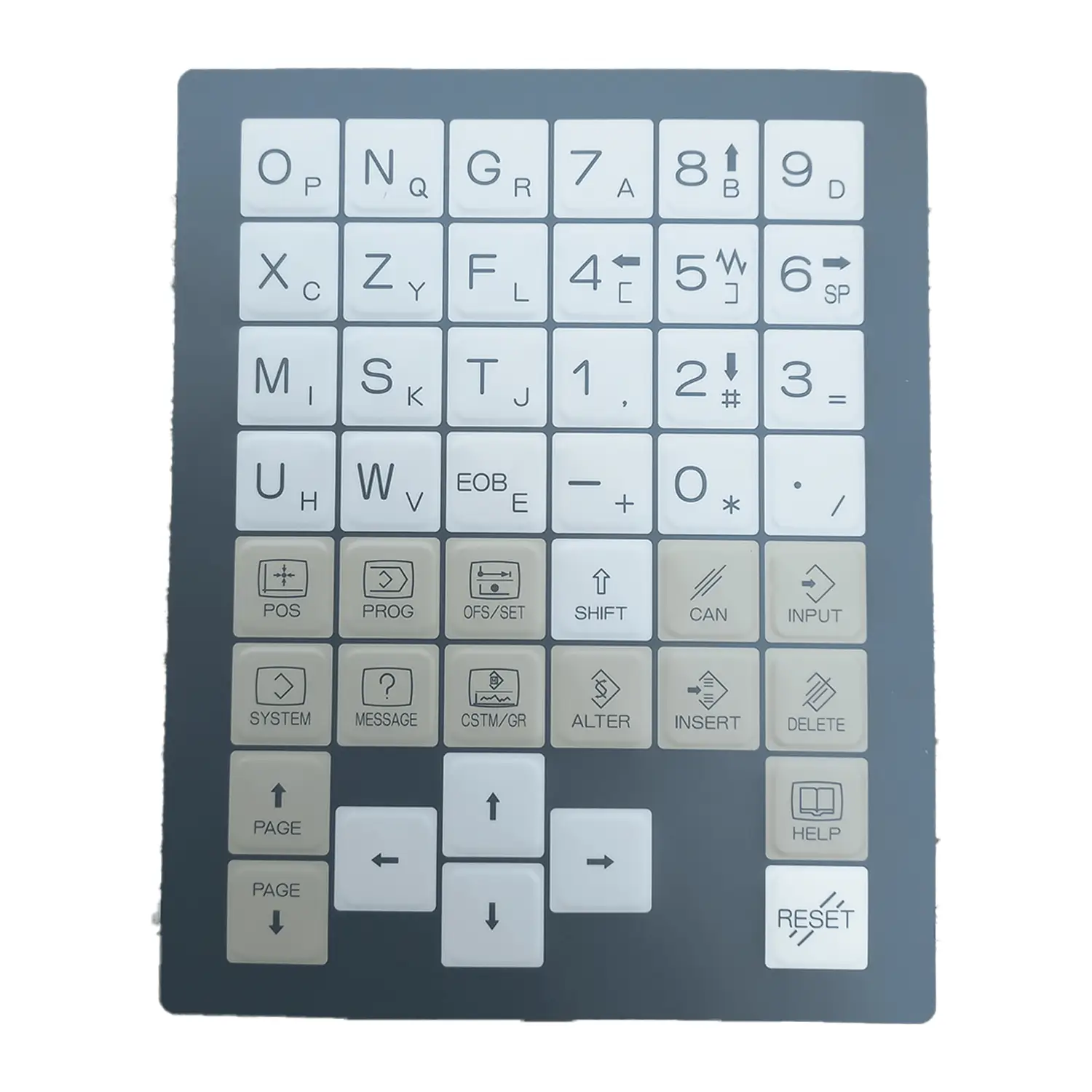

What is the FANUC A98L-0005-0298#T Membrane Keysheet

A98L-0005-0298#T is a membrane overlay designed for FANUC CNC control panels to provide the operator interface used for machine commands and input functions.

The keysheet acts as the human machine interface layer between the machine operator and the CNC control electronics. When the operator presses a key on the membrane surface, the input signal is transmitted to the control panel circuitry, allowing the CNC controller to execute the corresponding machine function.

Membrane keysheets also protect internal control panel components from dust, oil, and mechanical wear commonly found in machining environments.

Replacing a worn or damaged keysheet restores clear button labeling and ensures reliable operator input during CNC machine operation.

Technical Specifications

Key Functional Features

OEM Control Panel Layout

The keysheet is designed to match the original FANUC control panel layout so that button labels and functions align with the internal keypad circuitry.

Industrial Grade Membrane Material

The polyester membrane construction provides durability and resistance to abrasion, oil exposure, and repeated key presses.

Tactile Key Feedback

Membrane keys provide tactile feedback to the operator, allowing accurate control input during CNC machine operation.

Protective Interface Layer

The overlay acts as a protective barrier that shields internal control panel switches and electronics from contaminants.

Simple Installation

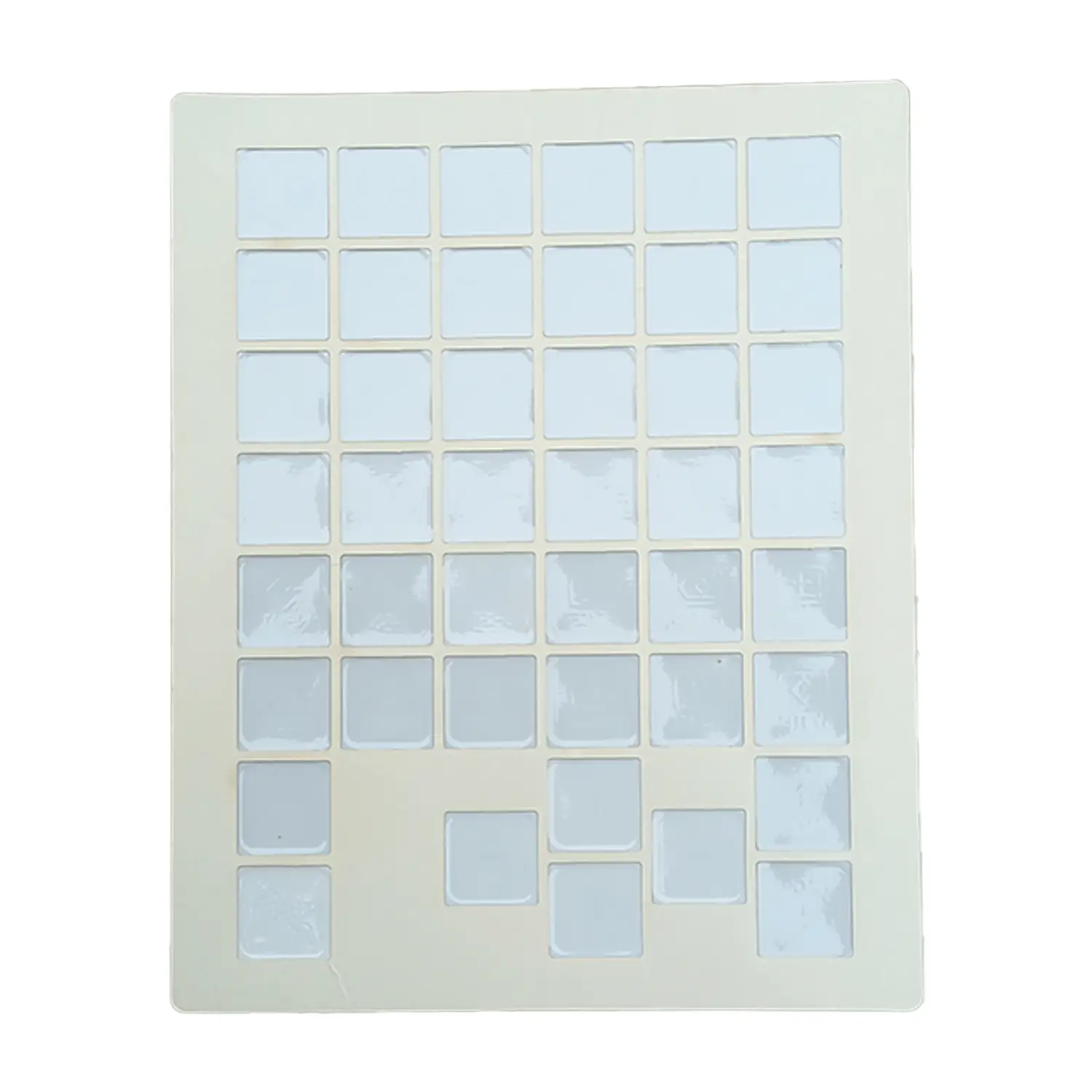

The keysheet includes an adhesive backing or frame mounting design that allows quick replacement without electrical modifications.

How CNC Membrane Keysheet Interfaces Work

Membrane keysheets allow machine operators to interact with CNC control systems.

During operation:

1. The operator presses a labeled key on the membrane overlay.

2. The membrane layer activates an electrical contact beneath the panel.

3. The signal is sent to the CNC control system.

4. The controller processes the command and executes the machine function.

This design provides a sealed interface that protects internal electronics while maintaining reliable operator control.

Typical Applications

CNC Machining Centers

Membrane keysheets allow operators to control machining parameters, program operations, and manage machine settings.

Industrial Automation Panels

Automation systems use membrane interfaces to control equipment and monitor production processes.

Robotic Control Systems

Robotic equipment with CNC-based control panels uses membrane keysheets for configuration and maintenance tasks.

CNC Machine Refurbishment

Replacing worn keysheets restores usability and improves the appearance of older CNC machine interfaces.

Compatibility

The A98L-0005-0298#T keysheet is designed for specific FANUC CNC control panel models.

Before installation, verify compatibility using:

• the existing keysheet part number

• CNC machine documentation

• control panel reference numbers

Frequently Asked Questions

Is this keysheet compatible with all FANUC CNC machines

No. The A98L-0005-0298#T keysheet is designed for specific FANUC control panel models. Compatibility should be verified using the panel part number or machine documentation.

Does this product include internal keypad electronics

No. This product includes only the membrane overlay and does not include the internal keypad assembly or electronics.

How is the keysheet installed

The keysheet is installed by removing the old overlay, cleaning the control panel surface, aligning the new keysheet, and applying it using the adhesive backing or panel frame.

Why replace a CNC membrane keysheet

Replacing a worn keysheet restores clear button labeling, improves operator input accuracy, and protects the control panel electronics from contamination.

Industrial Use Benefits

Replacing a CNC membrane keysheet provides several operational advantages:

• restores clear control panel labeling

• improves operator input accuracy

• protects internal panel electronics

• extends the service life of CNC machine interfaces

These improvements help maintain reliable machine operation in industrial machining environments.
