FANUC F93729734 Membrane Keysheet For Miyano

FANUC F93729734 CNC Membrane Keysheet for Miyano Machines | Control Panel HMI Overlay

Product Name

FANUC F93729734 CNC Membrane Keysheet

Part Number

F93729734

Product Category

CNC Control Panel Accessories and HMI Keysheet Overlays

Brand

FANUC

Condition

New

Availability

In Stock. Ships worldwide.

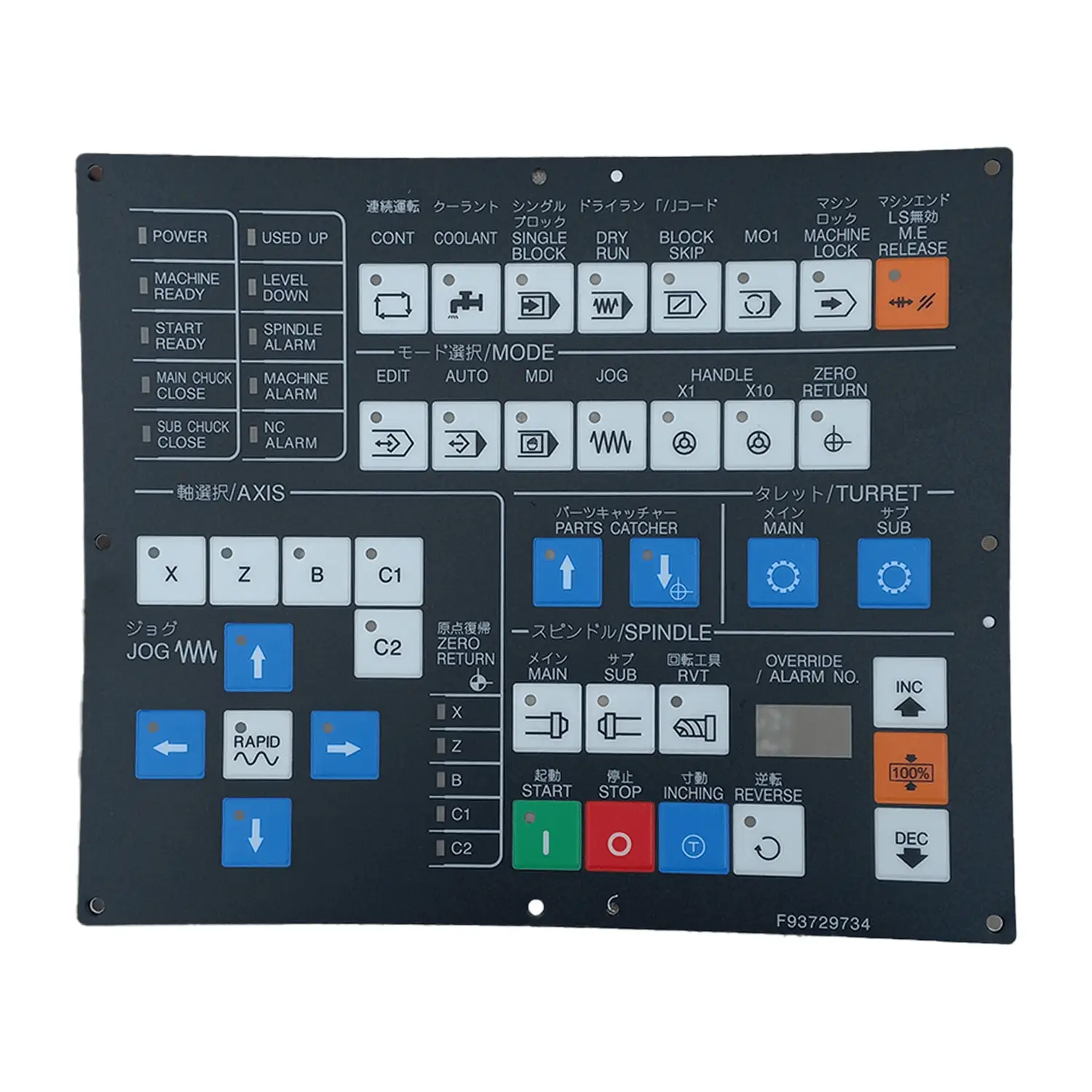

What is the FANUC F93729734 Membrane Keysheet

F93729734 is a membrane overlay used on CNC control panels to provide the operator interface for machine input and command execution.

This keysheet is designed for Miyano CNC machines and compatible FANUC control panels, where it acts as the surface interface between the operator and the control electronics.

The membrane keysheet allows operators to interact with the CNC control system through labeled tactile buttons. It also protects the underlying keypad circuitry from dust, oil, coolant, and other contaminants present in machining environments.

Replacing a worn or damaged keysheet restores clear key labeling, improves button responsiveness, and extends the service life of the control panel.

Technical Specifications

Key Functional Features

OEM Control Panel Compatibility

The keysheet is designed to match the original layout used on compatible Miyano CNC control panels equipped with FANUC interfaces.

Industrial Grade Membrane Material

The overlay is manufactured from oil resistant and wear resistant membrane material suitable for machine shop environments.

Tactile Operator Input

The membrane key structure provides responsive tactile feedback, allowing operators to accurately input machine commands.

Protection for Control Electronics

The keysheet acts as a protective barrier that shields the internal keypad circuitry from dust, oil, coolant, and debris.

Easy Installation

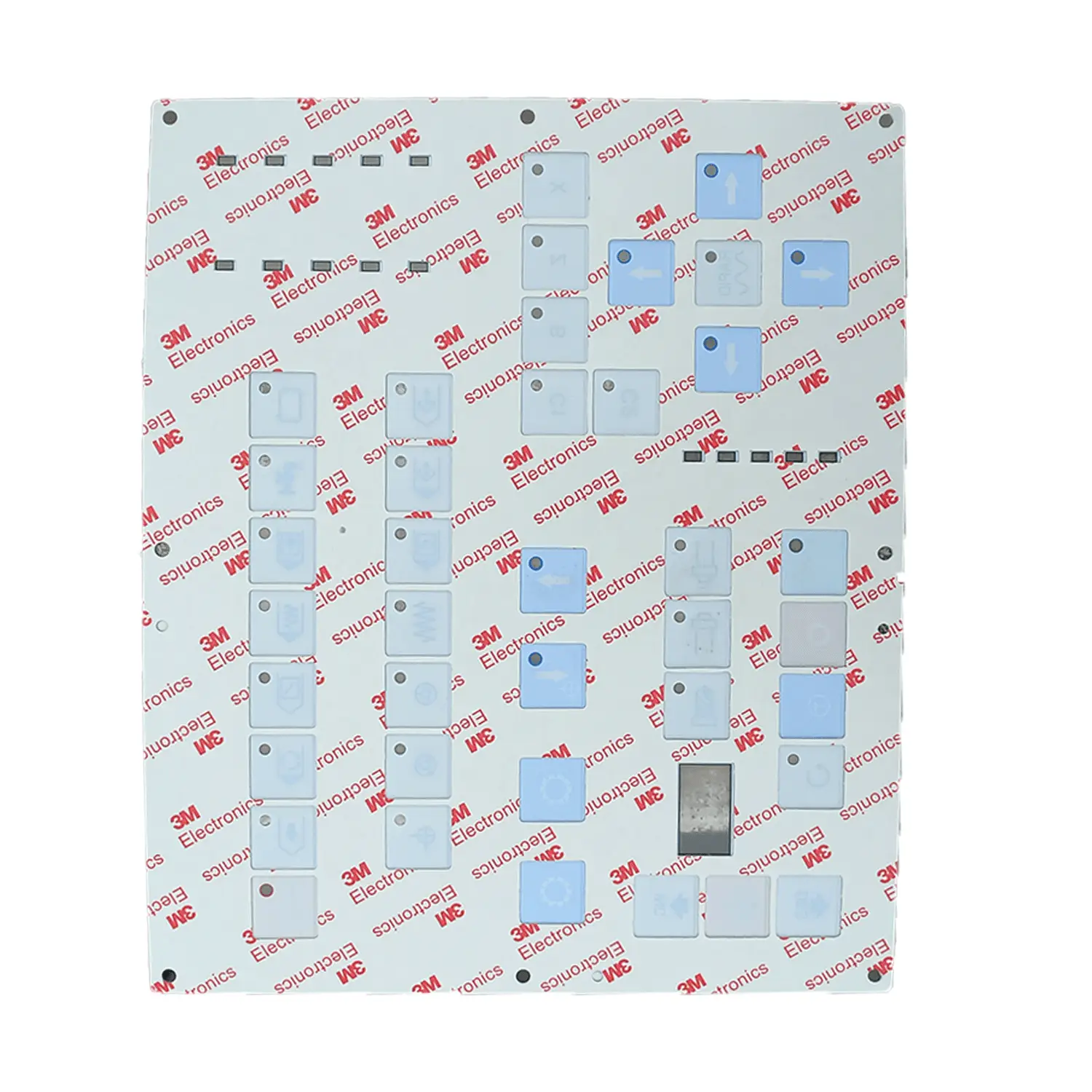

The overlay is designed for simple installation using either adhesive backing or panel frame mounting depending on the control panel configuration.

How CNC Membrane Keysheet Interfaces Work

Membrane keysheets act as the interface between machine operators and CNC control electronics.

During machine operation:

1. The operator presses a membrane key on the control panel.

2. The membrane layer activates the electrical contact beneath the overlay.

3. The control panel electronics detect the input signal.

4. The CNC controller processes the command and performs the requested machine operation.

This layered design protects internal components while enabling reliable operator input.

Typical Applications

Miyano CNC Machines

Miyano turning centers and machining systems use membrane overlays for operator control interfaces.

CNC Control Panel Maintenance

Replacing worn overlays restores functionality and improves control panel usability.

Industrial Machine Refurbishment

Control panel refurbishment projects often include replacing damaged membrane keysheets.

Manufacturing Environments

Membrane interfaces are used in factory environments where machines operate continuously and require durable operator panels.

Compatibility

The F93729734 membrane keysheet is primarily designed for:

• Miyano CNC machines

• FANUC control panels used in compatible Miyano systems

Always confirm compatibility using the machine model or control panel reference before installation.

Frequently Asked Questions

Is the F93729734 keysheet compatible with all FANUC control panels

No. The keysheet is designed primarily for Miyano CNC machines and specific FANUC control panel models.

Does this product include the keypad electronics

No. This product includes only the membrane overlay used on the control panel surface.

Can the keysheet be installed without specialized tools

Yes. Installation usually involves removing the old overlay, cleaning the panel surface, and applying the new keysheet.

What problem does replacing the keysheet solve

Replacing a worn keysheet restores clear button labeling, improves input response, and protects the internal keypad components.

Industrial Use Benefits

Replacing a damaged CNC membrane keysheet provides several advantages:

• improved operator input accuracy

• clearer control panel labeling

• protection against dust and coolant exposure

• extended lifespan of CNC control panel electronics

These benefits support reliable operation of CNC machines in industrial environments.
