FANUC IC690USB901 Alpha Series USB to SNP Data Cable

FANUC IC690USB901 USB to SNP Data Cable | Alpha Series CNC Communication Cable

Product Name

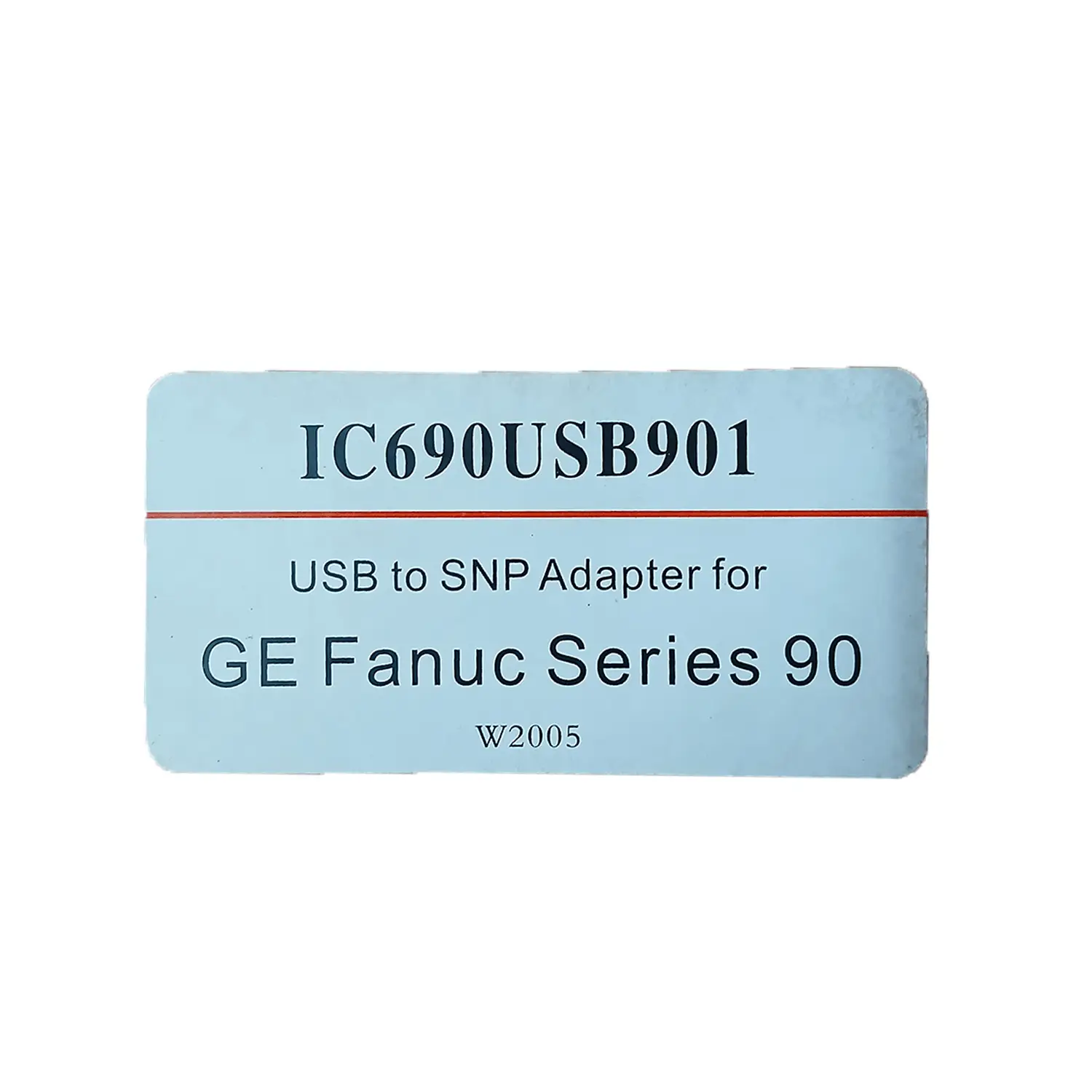

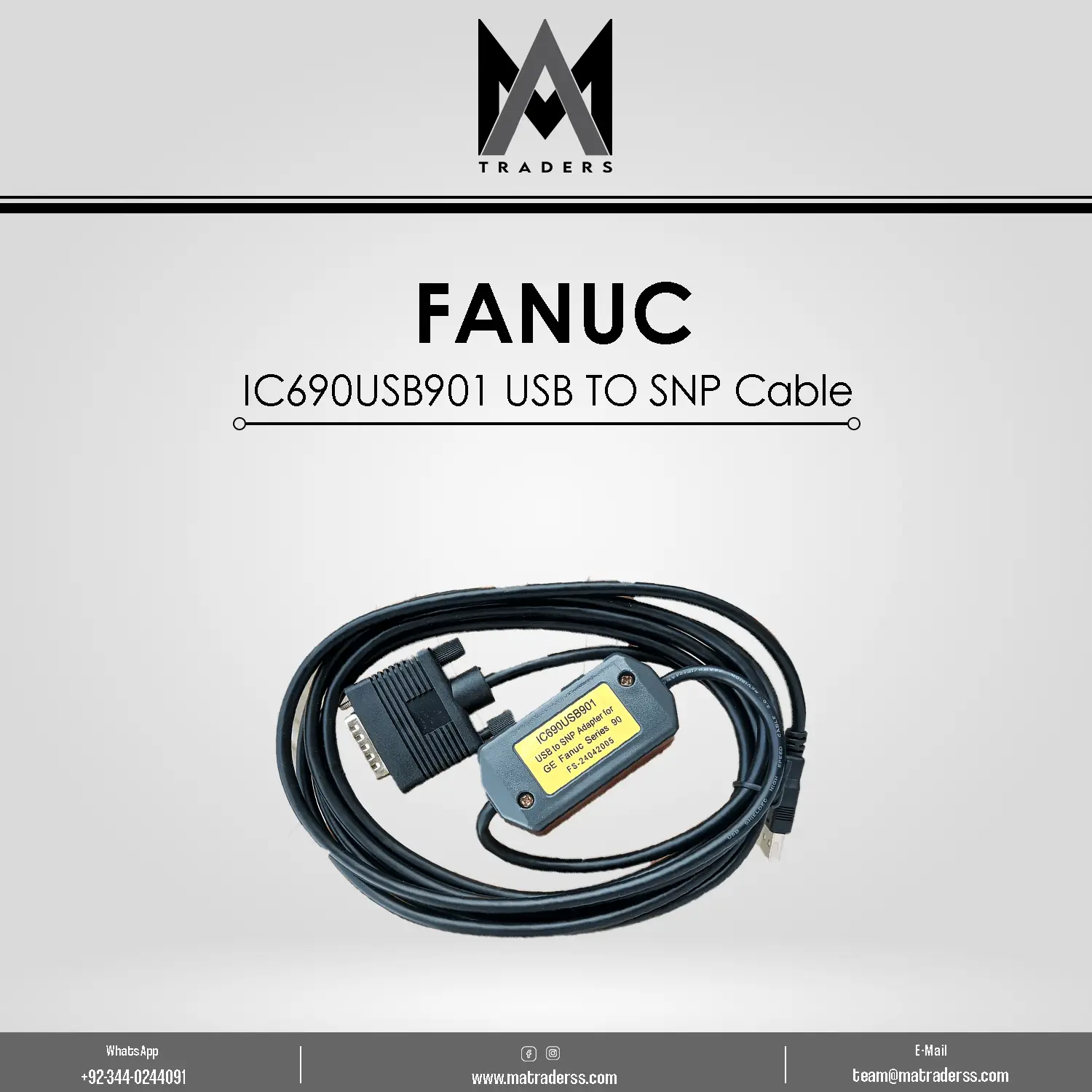

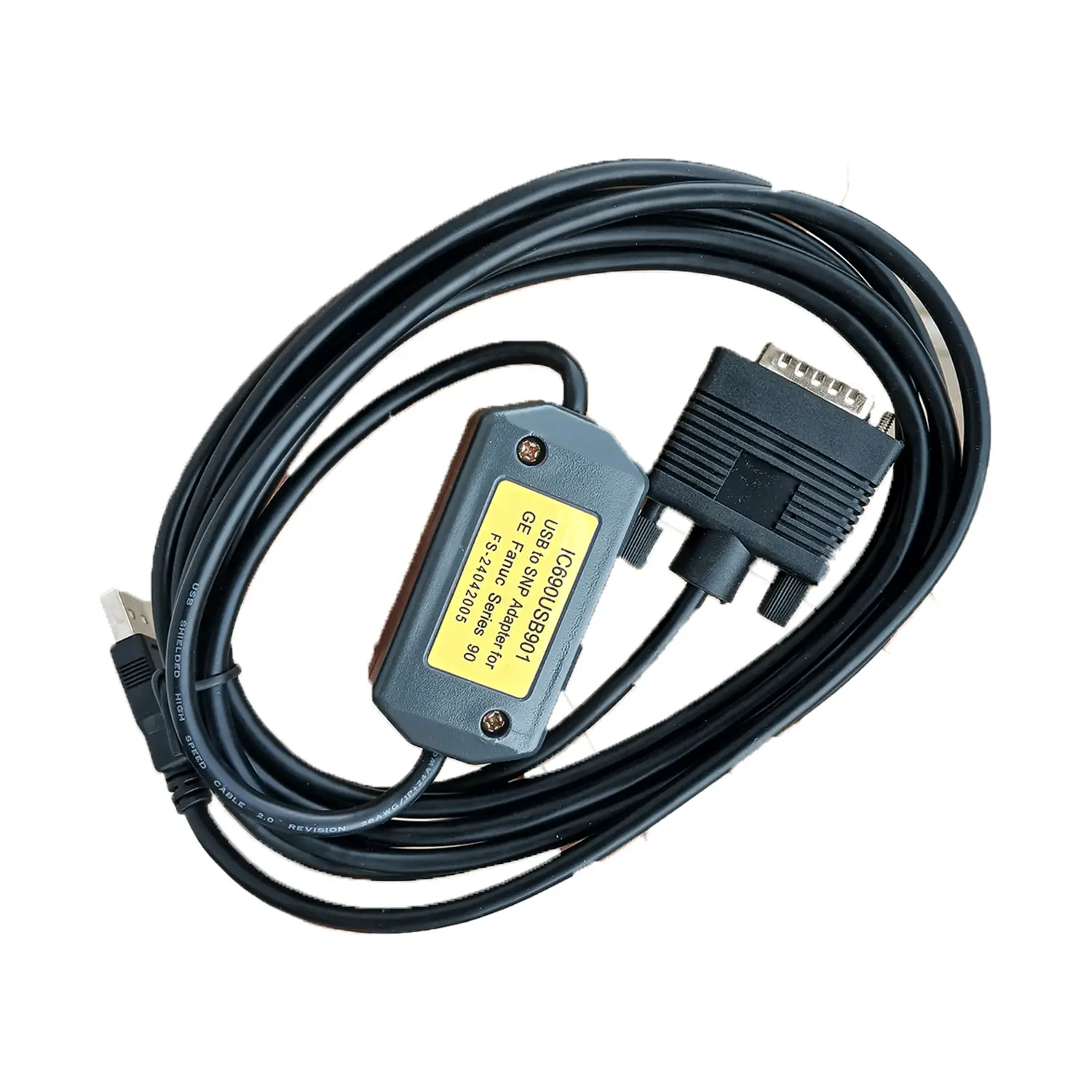

FANUC IC690USB901 Alpha Series USB to SNP Data Cable

Part Number

IC690USB901

Product Category

CNC Interface Cables and FANUC Data Communication Accessories

Cable Type

USB to SNP (Serial Network Protocol) Communication Cable

Availability

In Stock. Contact to confirm lead time and delivery schedule.

What is the FANUC IC690USB901 USB to SNP Data Cable

IC690USB901 is a communication cable used to connect a computer to FANUC Alpha Series CNC machines and PLC controllers using the Serial Network Protocol (SNP).

This cable enables engineers and technicians to exchange data between a PC and FANUC automation equipment for programming, diagnostics, configuration, and data monitoring.

By converting a standard USB interface into an SNP communication connection, the cable allows modern computers to interact with industrial control systems that use FANUC communication protocols.

The IC690USB901 cable is commonly used during CNC machine setup, system commissioning, software updates, and industrial troubleshooting operations.

Technical Specifications

Key Functional Features

USB to SNP Communication Interface

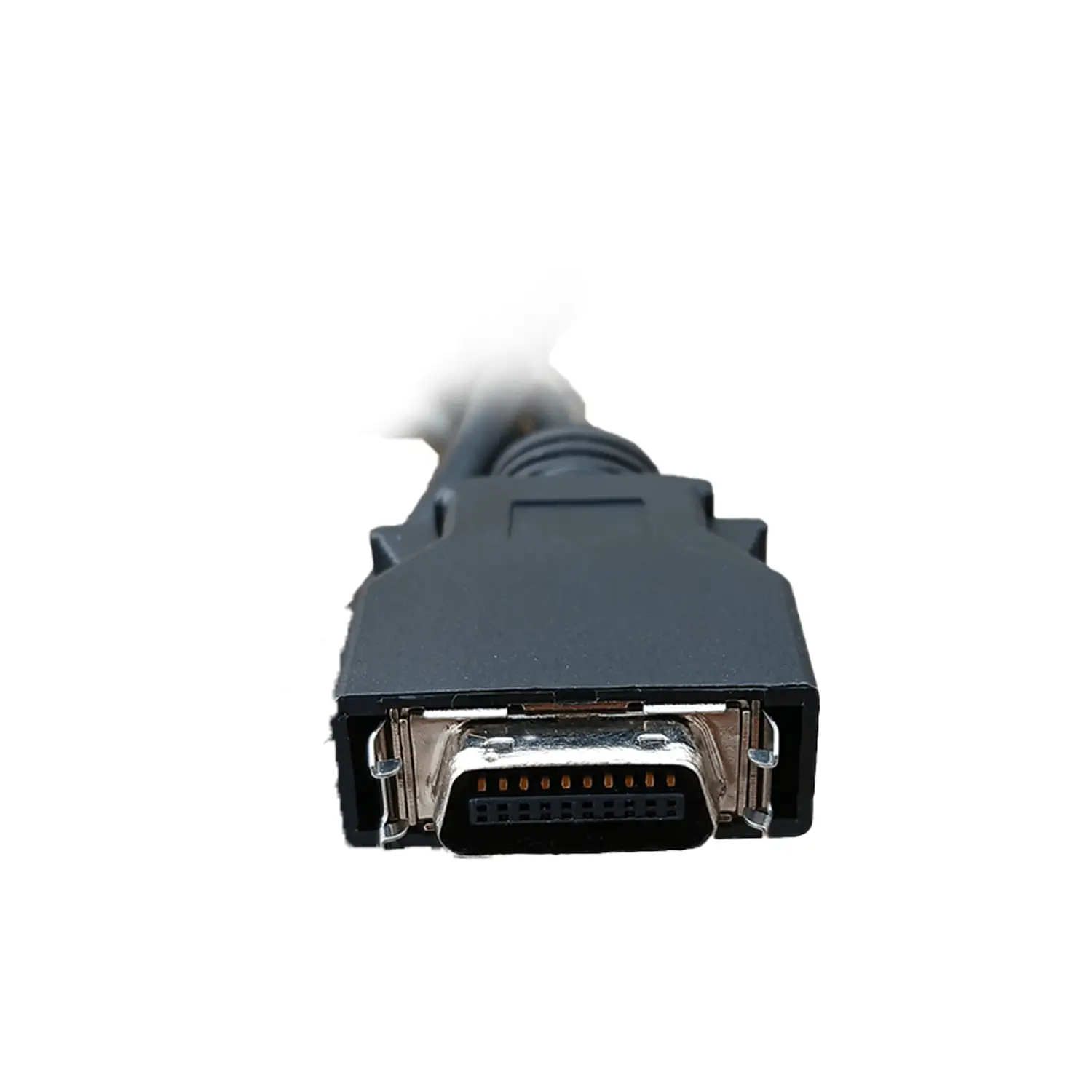

The cable converts a USB connection from a computer into an SNP communication interface used by FANUC CNC machines and PLC controllers.

Plug and Play Installation

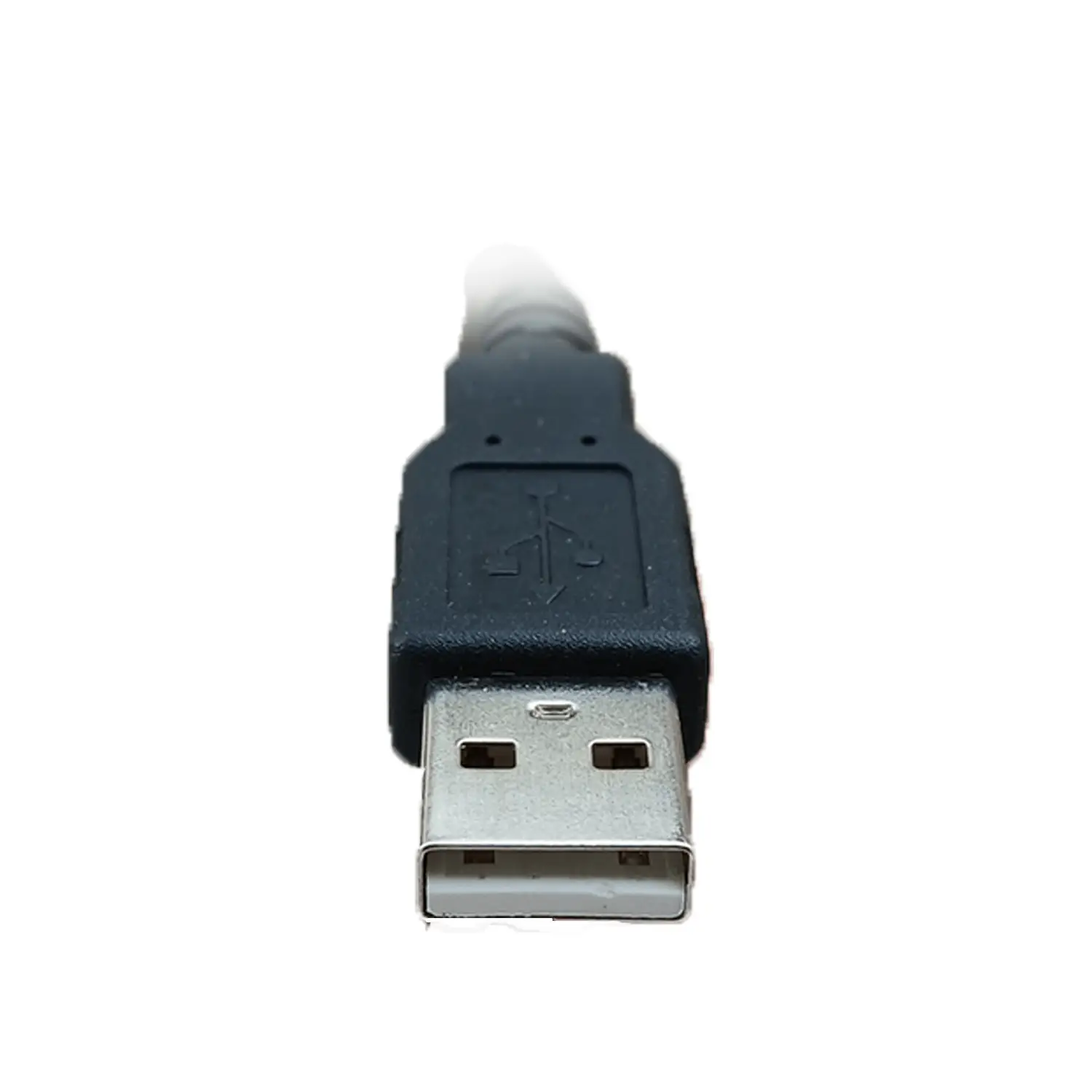

The cable connects directly to a computer USB port and does not require external power supplies.

Industrial Signal Shielding

Braided and foil shielding protects the data signal from electromagnetic interference commonly present in industrial environments.

FANUC Alpha Series Compatibility

The cable is designed to communicate with FANUC Alpha Series CNC systems and controllers that support SNP protocol.

Reliable Data Transmission

Stable communication ensures accurate data transfer during programming, parameter configuration, and system diagnostics.

How CNC Communication Cables Work

Communication cables allow computers to interact with industrial control systems.

In CNC communication systems:

1. The cable connects the computer USB port to the controller communication port.

2. Communication software sends commands or data to the CNC or PLC system.

3. The controller processes the information and executes machine operations.

4. Diagnostic data and machine status information are transmitted back to the computer.

This process allows technicians to monitor and control machine behavior during operation and maintenance.

Typical Applications

CNC Machine Programming

Technicians use the cable to transfer machining programs and update machine parameters.

PLC Diagnostics

The cable allows engineers to monitor and troubleshoot PLC communication and system status.

Machine Commissioning

During machine installation, communication cables enable configuration and testing of CNC systems.

Data Logging and Monitoring

Industrial systems can send operational data and diagnostic information to a computer for analysis.

Compatibility

Supported FANUC Systems

The IC690USB901 cable is compatible with FANUC devices that support SNP communication.

Typical compatibility includes:

• FANUC Alpha Series CNC systems

• FANUC PLC controllers using SNP protocol

Compatibility should be verified based on the controller communication interface.

Frequently Asked Questions

Does the IC690USB901 require special drivers

Most systems recognize the cable automatically, but FANUC communication software may be required for configuration and programming tasks.

What devices can be connected using this cable

The cable is designed to connect computers with FANUC Alpha Series CNC machines and PLC systems that support SNP communication.

Is the cable suitable for industrial environments

Yes. The shielded construction protects the signal from electromagnetic interference and ensures stable communication in industrial environments.

What is the main purpose of the cable

The cable allows engineers and technicians to configure CNC machines, transfer programs, and perform diagnostics using a computer.

Industrial Use Benefits

Using the correct CNC communication cable provides several advantages:

• stable machine communication

• accurate program transfer

• faster diagnostics and troubleshooting

• improved maintenance efficiency

These benefits help maintain reliable operation of CNC machines and industrial automation systems.
