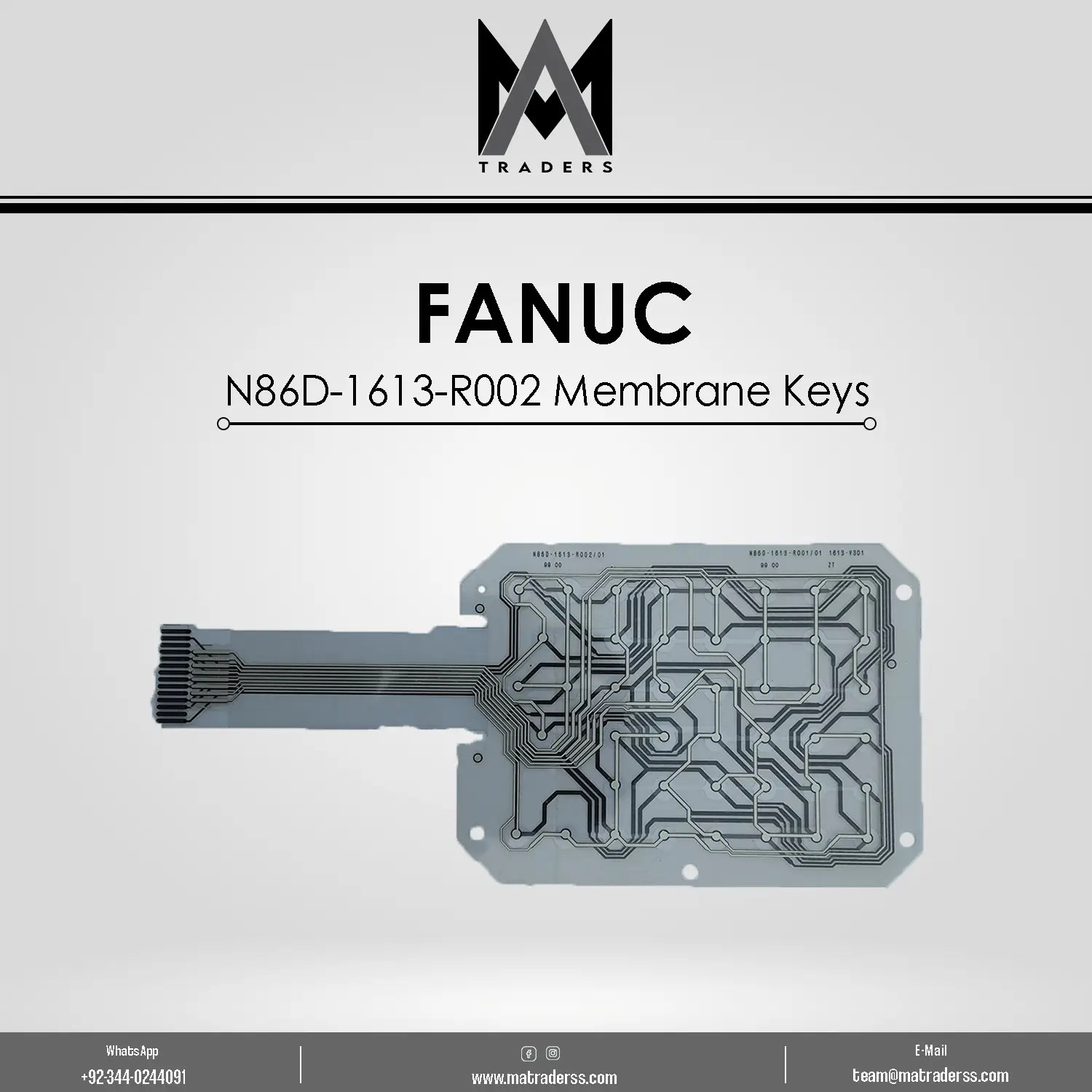

FANUC N86D-1613-R002 Membrane Keypad

FANUC N86D-1613-R002 CNC Membrane Keypad | Control Panel HMI Overlay

Product Name

FANUC N86D-1613-R002 CNC Membrane Keypad

Part Number

N86D-1613-R002

Product Category

HMI Interfaces and CNC Control Panel Overlays

Brand

FANUC

Condition

New

Availability

In Stock. Ships worldwide.

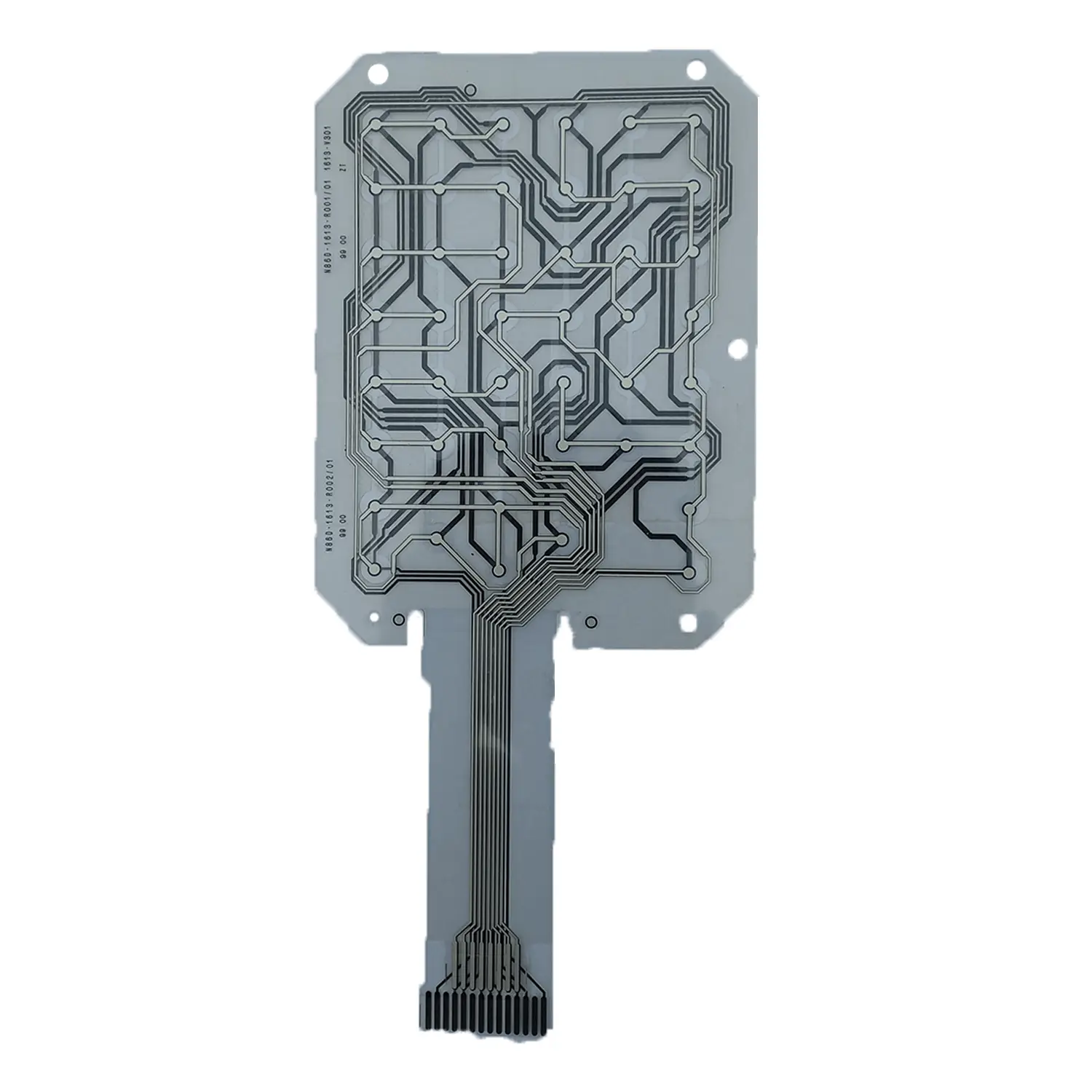

What is the FANUC N86D-1613-R002 Membrane Keypad

N86D-1613-R002 is a membrane keypad overlay used on FANUC CNC control panels to provide the operator interface for machine input commands.

The keypad functions as the human machine interface layer that allows CNC operators to interact with the control system through labeled membrane buttons. It sits above the internal keypad circuitry and protects electronic components from dust, oil, and industrial contaminants.

Membrane keypads are commonly replaced when the original interface becomes worn, faded, or unresponsive due to continuous use in machining environments.

The FANUC N86D-1613-R002 keypad is designed to match the original layout of compatible FANUC CNC control panels, ensuring accurate key placement and reliable operation.

Technical Specifications

Key Functional Features

OEM Layout Compatibility

The keypad matches the original FANUC control panel layout so that each membrane key aligns with the correct internal switch position.

Industrial Grade Membrane Material

The polyester membrane surface is designed to withstand oil exposure, abrasive contact, and continuous use in machining environments.

Tactile Key Feedback

Membrane keys provide tactile feedback when pressed, helping operators confirm commands during machine operation.

Protective Interface Layer

The keypad overlay protects the internal control panel electronics from contamination and mechanical wear.

Simple Replacement Installation

The membrane keypad can be installed by aligning the overlay with the control panel and applying the adhesive or mounting frame.

How CNC Membrane Keypads Work

Membrane keypads allow operators to send commands to CNC machines through physical input buttons.

During operation:

1. The operator presses a membrane key.

2. The membrane activates a switch contact beneath the overlay.

3. The control panel electronics detect the input signal.

4. The CNC controller executes the corresponding machine command.

This design protects internal components while maintaining reliable operator control.

Typical Applications

CNC Machining Centers

Membrane keypads allow operators to control machining parameters, start operations, and monitor machine status.

Industrial Automation Systems

Automation panels often use membrane keypads for system configuration and operational input.

CNC Machine Maintenance

Replacing worn keypads restores accurate input functionality on aging CNC control panels.

Control Panel Refurbishment

Maintenance teams replace membrane overlays to restore readability and usability of control interfaces.

Compatibility

The N86D-1613-R002 membrane keypad is designed for specific FANUC CNC control panel models.

Compatibility should be verified using:

• the CNC machine documentation

• the control panel model number

• the original keypad part number

Frequently Asked Questions

Does the N86D-1613-R002 include the internal switch assembly

No. This product includes the membrane keypad overlay only and does not include the internal switch contacts or control panel electronics.

Is this keypad compatible with all FANUC CNC machines

No. The keypad is designed for specific FANUC control panel models. Compatibility should be verified before installation.

What material is used in the keypad

The keypad is manufactured from industrial-grade polyester membrane material designed for durability in machining environments.

What problem does replacing the keypad solve

Replacing the keypad restores clear key labeling, improves button responsiveness, and protects the control panel electronics from contamination.

Industrial Use Benefits

Replacing worn CNC membrane keypads provides several operational advantages:

• improved operator input accuracy

• clearer control panel labeling

• protection of internal control electronics

• extended service life of the CNC control interface

These benefits help maintain reliable operation of CNC machines in industrial environments.
