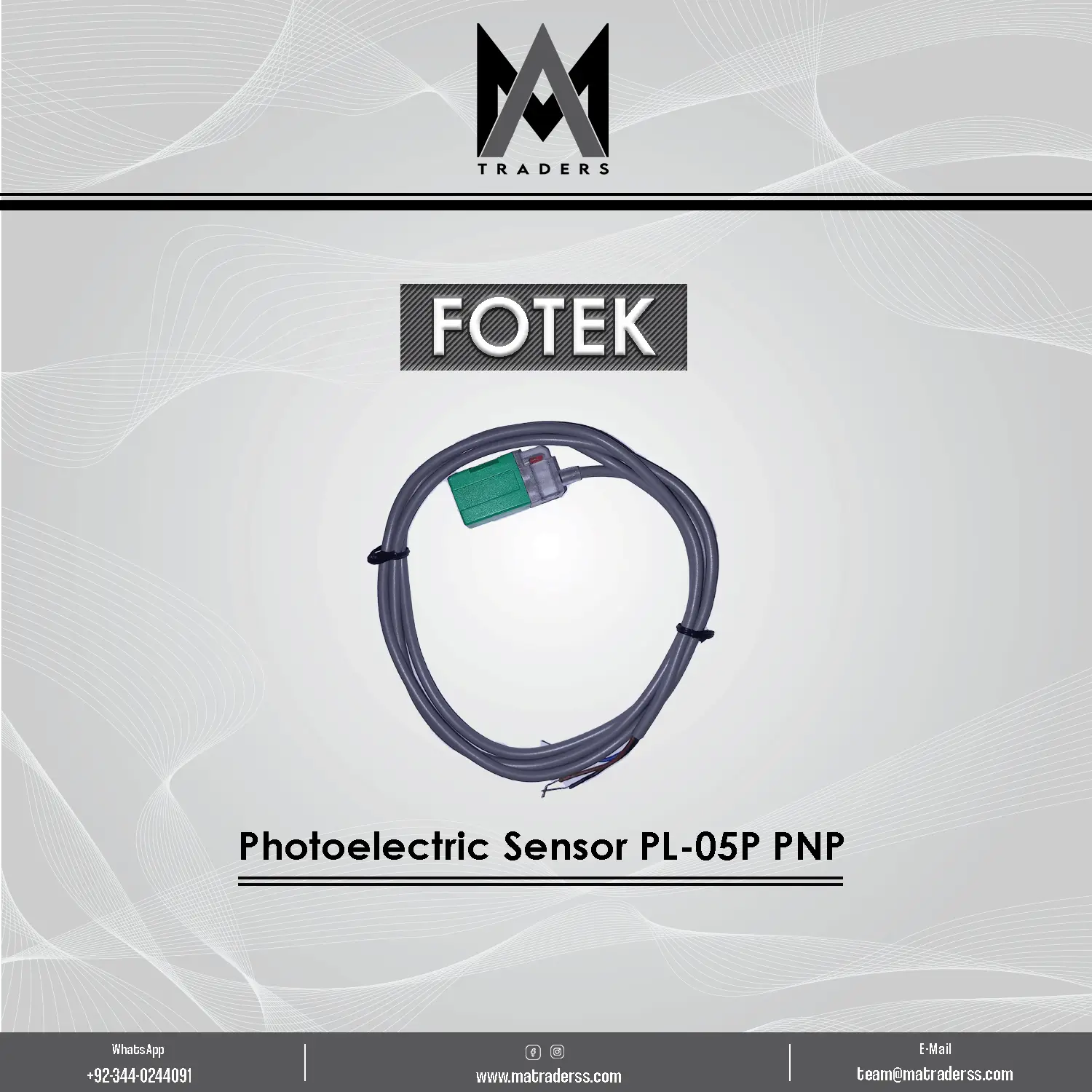

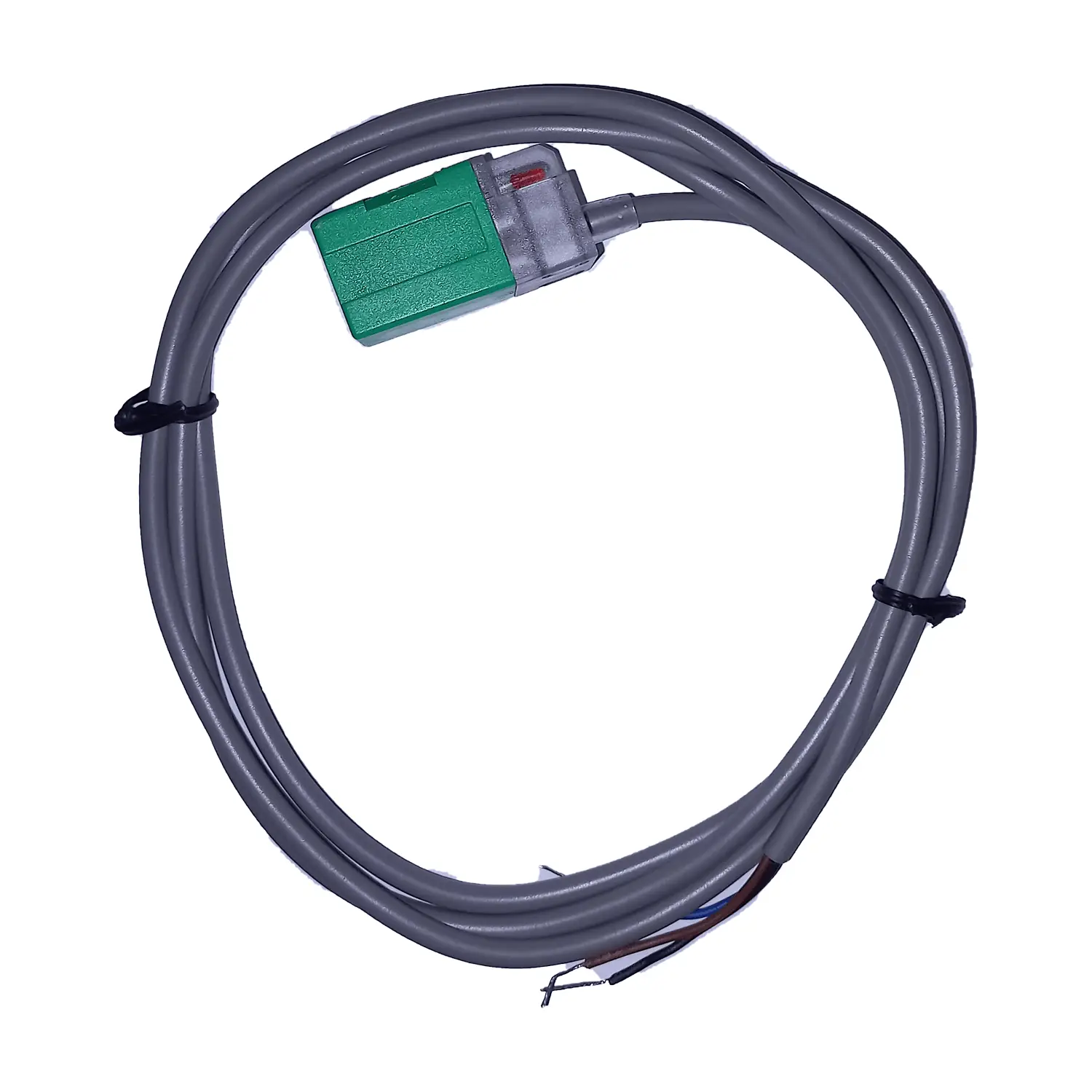

Fotek PL-05P PNP Inductive Proximity Sensor | 5mm Detection Distance | Industrial Automation Sensor
Product Name
Fotek PL-05P PNP Proximity Sensor
Part Number
PL-05P
Brand
Fotek
Sensor Type
PNP Inductive Proximity Sensor (Normally Open)
Condition
New
Availability
In Stock. Ships nationwide.
What is the Fotek PL-05P Proximity Sensor
PL-05P is an inductive proximity sensor used to detect the presence of metal objects without physical contact in industrial automation systems.
The sensor uses an electromagnetic field to identify metallic targets within its sensing range. When a metal object enters the detection zone, the sensor switches its output signal, allowing the control system to respond to the detected object.
The Fotek PL-05P sensor provides a 5mm sensing distance, making it suitable for precision detection tasks in CNC machinery, robotic automation systems, conveyors, and industrial equipment.
Inductive proximity sensors are commonly used in automation environments where reliable object detection is required under harsh operating conditions such as dust, oil, vibration, and temperature variations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PL-05P |
| Sensor Type | Inductive Proximity Sensor |
| Output Type | PNP Normally Open |
| Sensing Distance | 5mm ±10% |
| Power Supply | 10–30V DC |
| Response Frequency | Up to 500Hz |
| Protection Rating | IP67 |
| Operating Temperature | -25°C to +70°C |
| Cable Length | 2 meters |
| Wiring Type | 3-wire system |
Key Functional Features
5mm Detection Range
The sensor detects metal targets within a 5mm sensing distance, allowing accurate detection in automated machinery and production equipment.
Non-Contact Detection
Inductive sensing technology allows detection of metal objects without physical contact, reducing wear and increasing service life.
PNP Normally Open Output
The PNP normally open output configuration allows easy integration with industrial control systems such as PLCs and CNC machines.
High-Speed Response
A response frequency of up to 500Hz enables the sensor to operate in high-speed automation environments.
IP67 Environmental Protection
The sealed housing protects the sensor from dust, oil, and water, making it suitable for harsh industrial environments.
LED Status Indicator
An integrated LED indicator provides visual confirmation of sensor operation and detection status.

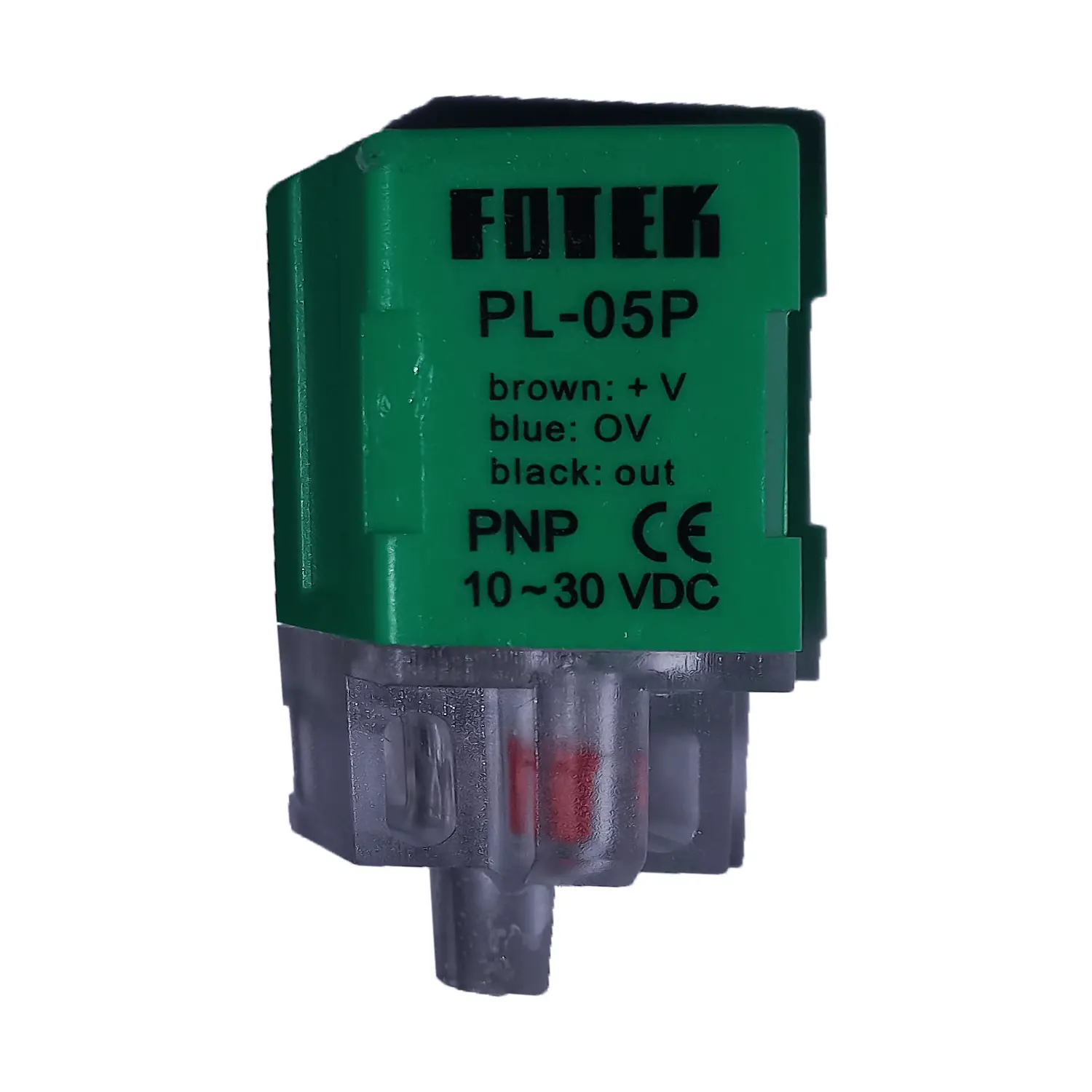

Wiring Configuration
The Fotek PL-05P uses a 3-wire connection system.
| Wire Color | Function |
|---|---|
| Brown | Positive supply (V+) |
| Blue | Ground (GND) |
| Black | Output signal |
Correct wiring ensures proper communication between the sensor and the control system.
How Inductive Proximity Sensors Work
Inductive proximity sensors detect metal objects using electromagnetic induction.
During operation:
The sensor generates an electromagnetic field at the sensing face.
When a metal object enters the sensing zone, the field is disturbed.
The sensor detects this change and switches the output signal.
The control system receives the signal and executes the programmed action.
This detection method allows reliable sensing without mechanical contact.
Typical Applications
Industrial Automation Systems
Sensors detect metal components in automated production processes.
CNC Machines
Proximity sensors are used for tool positioning, limit detection, and machine safety systems.
Robotics
Robotic systems use sensors to detect objects and control automated movements.
Conveyor Systems
Sensors detect products moving along conveyor belts to control sorting or stopping mechanisms.
Packaging Equipment
Automation systems use sensors to detect products during filling, labeling, or sealing processes.
Compatibility
The Fotek PL-05P proximity sensor can be used with industrial control systems including:
PLC control systems
CNC machine controllers
industrial automation equipment
robotic automation systems
Compatibility should be verified based on the control system input type.
Frequently Asked Questions
What type of objects can the PL-05P detect
The sensor is designed to detect ferrous metal targets, with optimal performance when detecting iron objects.
What is the sensing distance of the PL-05P sensor
The sensor has a 5mm sensing distance, with a tolerance of approximately ±10 percent depending on the target material.
Can the sensor operate in harsh environments
Yes. The sensor has IP67 protection, allowing operation in environments with dust, oil, and moisture.
Does the sensor require physical contact with the object
No. The sensor uses non-contact inductive detection to identify metal objects.
Industrial Use Benefits
Using inductive proximity sensors provides several operational advantages:
reliable object detection without physical contact
reduced mechanical wear on equipment
fast response for high-speed automation processes
stable performance in harsh industrial environments
These advantages make inductive sensors widely used in modern automation systems.
