The Fuji Electric AH165-TF command switch is an industrial pushbutton designed for control panels used in automation systems, manufacturing equipment, and machine control stations. The switch provides reliable momentary electrical switching when pressed, allowing operators to initiate or control machine functions.
The AH165-TF belongs to the Fuji Electric AH165 series, which is widely used in industrial control panels due to its compact design, durable construction, and consistent switching performance. The switch fits standard 22 mm panel mounting holes, making it compatible with many industrial control enclosures.
Built with flame resistant thermoplastic and sealed to IP65 protection at the front panel, the switch is suitable for environments where dust, vibration, and moisture are present.
Fuji Electric
AH165-TF
Industrial Pushbuttons
Command Switches
New Factory Sealed
In Stock with worldwide shipping available
The switch is designed for long service life in control systems exposed to vibration, repetitive operation, and demanding industrial conditions.
Compatible with standard 22 mm control panel cutouts, allowing installation in a wide range of industrial control panels.
The pushbutton mechanism uses a snap action design that provides clear tactile feedback and consistent electrical contact switching.
The AH165 series supports interchangeable contact blocks that allow configuration such as 1NO, 1NC, or combined contact arrangements.
The front panel of the switch is rated IP65, protecting against dust ingress and water spray.
| Specification | Details |
|---|---|
| Model | AH165-TF |
| Switch Type | Momentary Pushbutton |
| Mounting Diameter | 22 mm Panel Cutout |
| Contact Configuration | 1NO / 1NC (Modular Blocks Available) |
| Operation Type | Flat Head Pushbutton |
| Housing Material | Flame Resistant Thermoplastic |
| Protection Rating | IP65 (Front Panel) |
| Electrical Rating | 10A at 250V AC / 5A at 30V DC |
| Operating Temperature | –25°C to +55°C |
| Certifications | CE, UL, CSA, TUV |
The AH165-TF operates using a mechanical pushbutton mechanism.
During operation:
The operator presses the pushbutton actuator.
Internal contacts change state through a snap action mechanism.
The electrical circuit opens or closes depending on the contact configuration.
When the button is released, the switch returns to its default state.
Used as start, stop, or function control switches in automated production equipment.
Installed on operator panels controlling conveyor systems, motors, and machinery.
Used in process plants such as oil and gas, chemical processing, and food production facilities.
Integrated into custom machinery, robotics, and equipment control stations.
The switch is designed for 22 mm standard panel cutouts, which simplifies installation in control enclosures.
Select appropriate contact blocks depending on the required switching function.
Ensure electrical connections match the required voltage and current ratings.
Provides consistent switching response for machine control functions.
Flame resistant thermoplastic housing supports long term industrial use.
Modular contact blocks allow customization for different control circuits.
IP65 rating protects the front panel from dust and water spray.
The AH165-TF is a momentary pushbutton switch, meaning it returns to its original position after being released.
The IP65 rating protects against dust and water spray, allowing installation in indoor and protected outdoor environments.
Yes. The AH165 series supports modular contact blocks that can be configured as normally open or normally closed contacts.

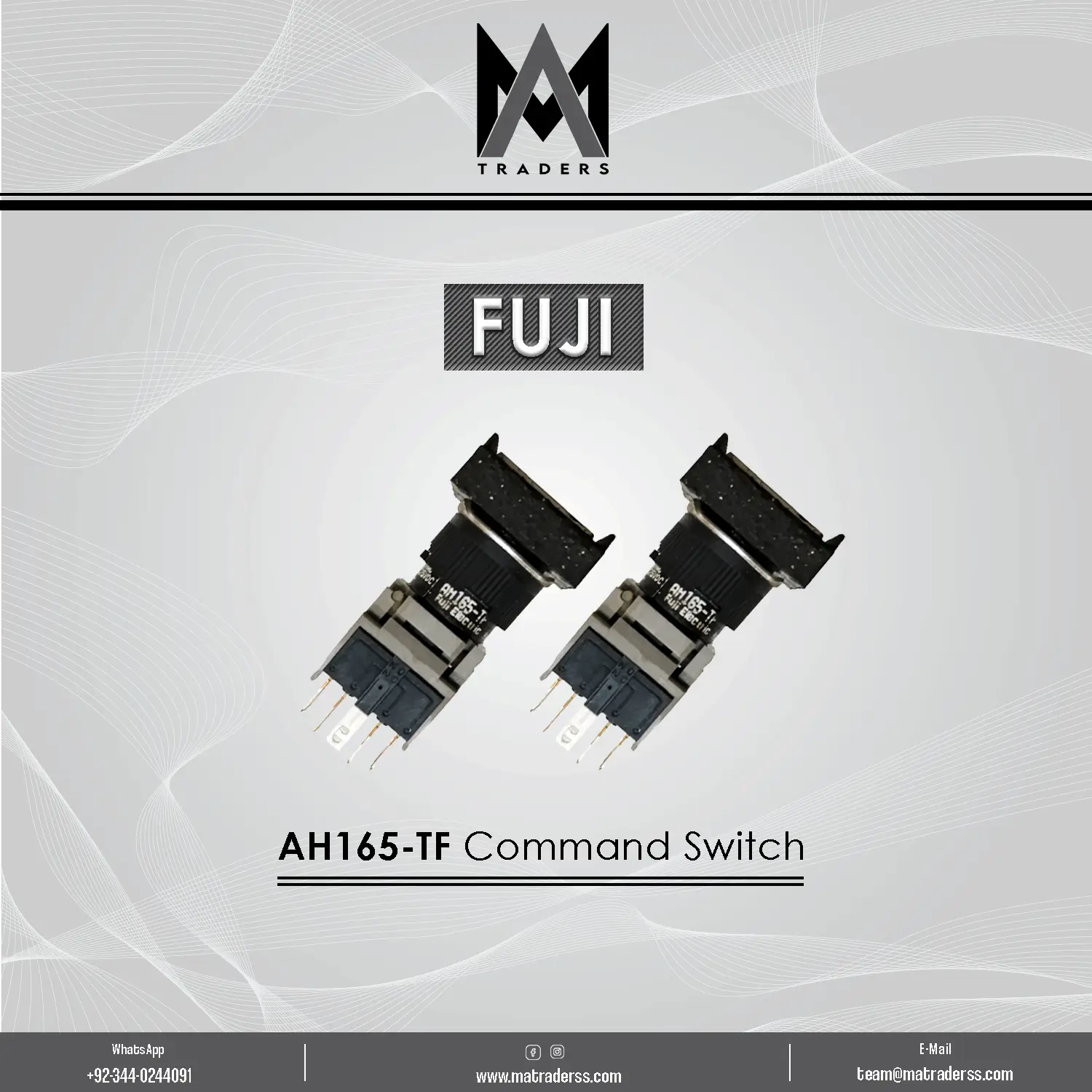

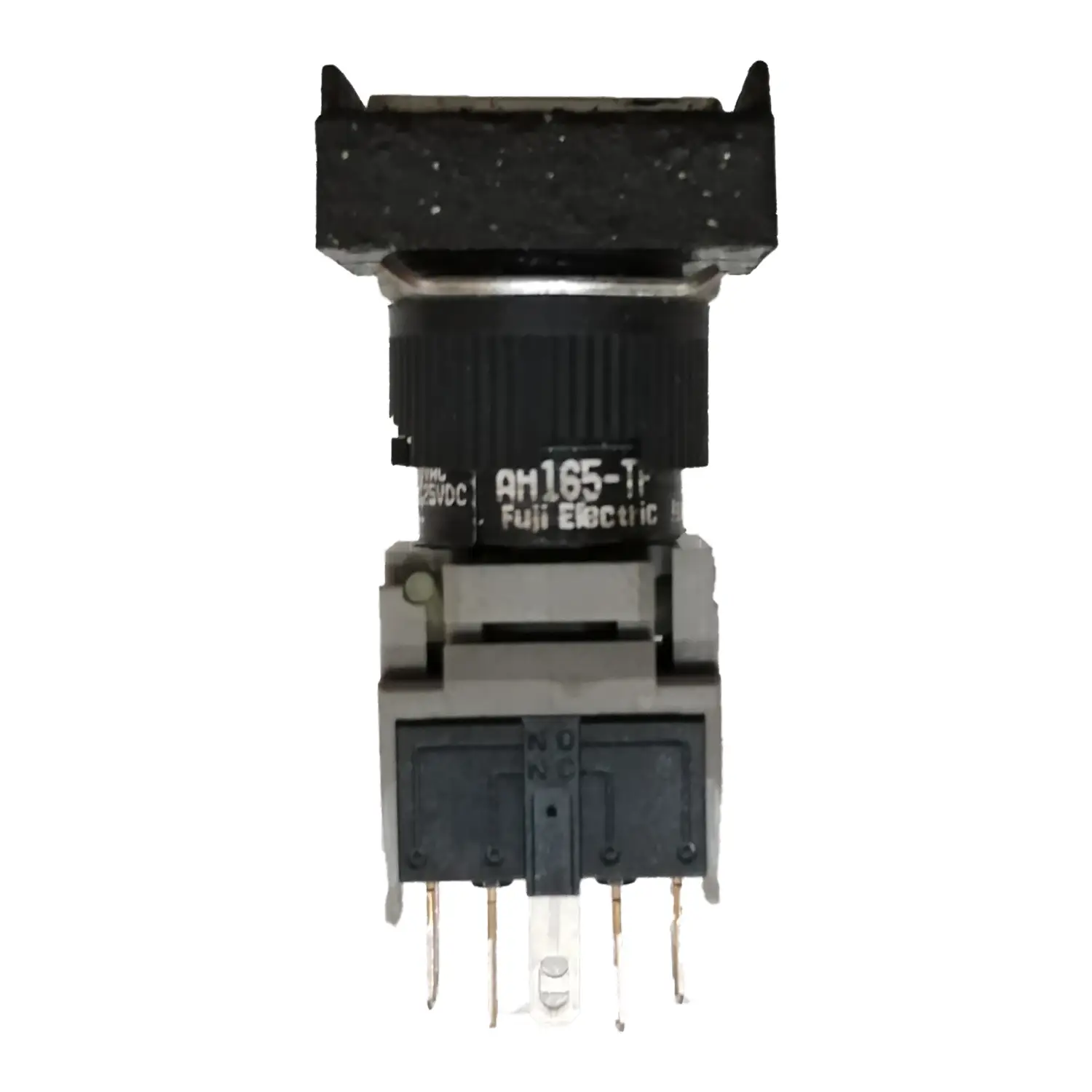

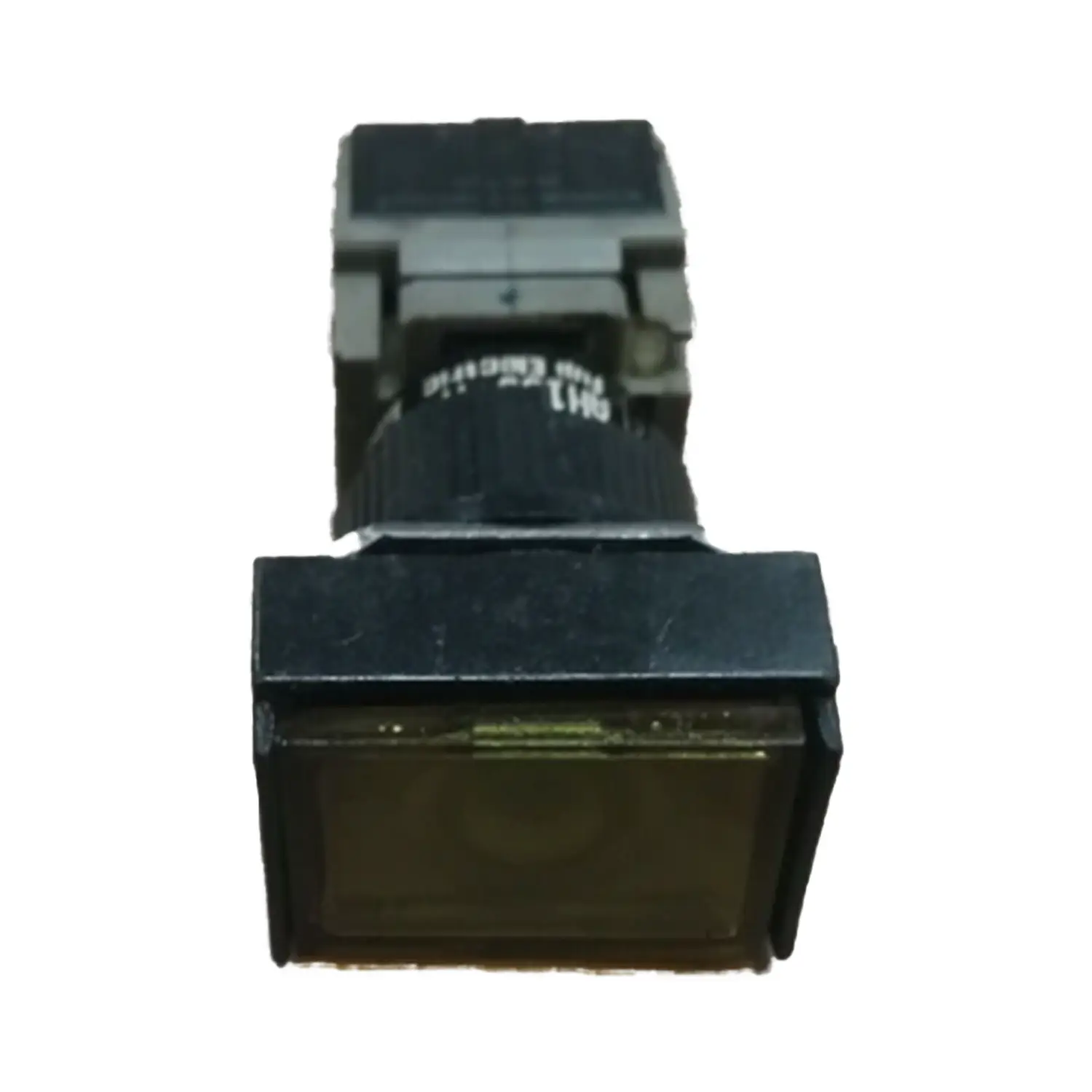

Fuji Electric AH165-TF command pushbutton switch
protective packaging
