The Micro Combi KD-815 Alpha Series Durable Keysheet Panel is a high-quality membrane keypad designed for industrial control systems, CNC machines, and automation panels. It ensures smooth operation, responsive key feedback, and long-lasting durability, making it ideal for demanding environments.

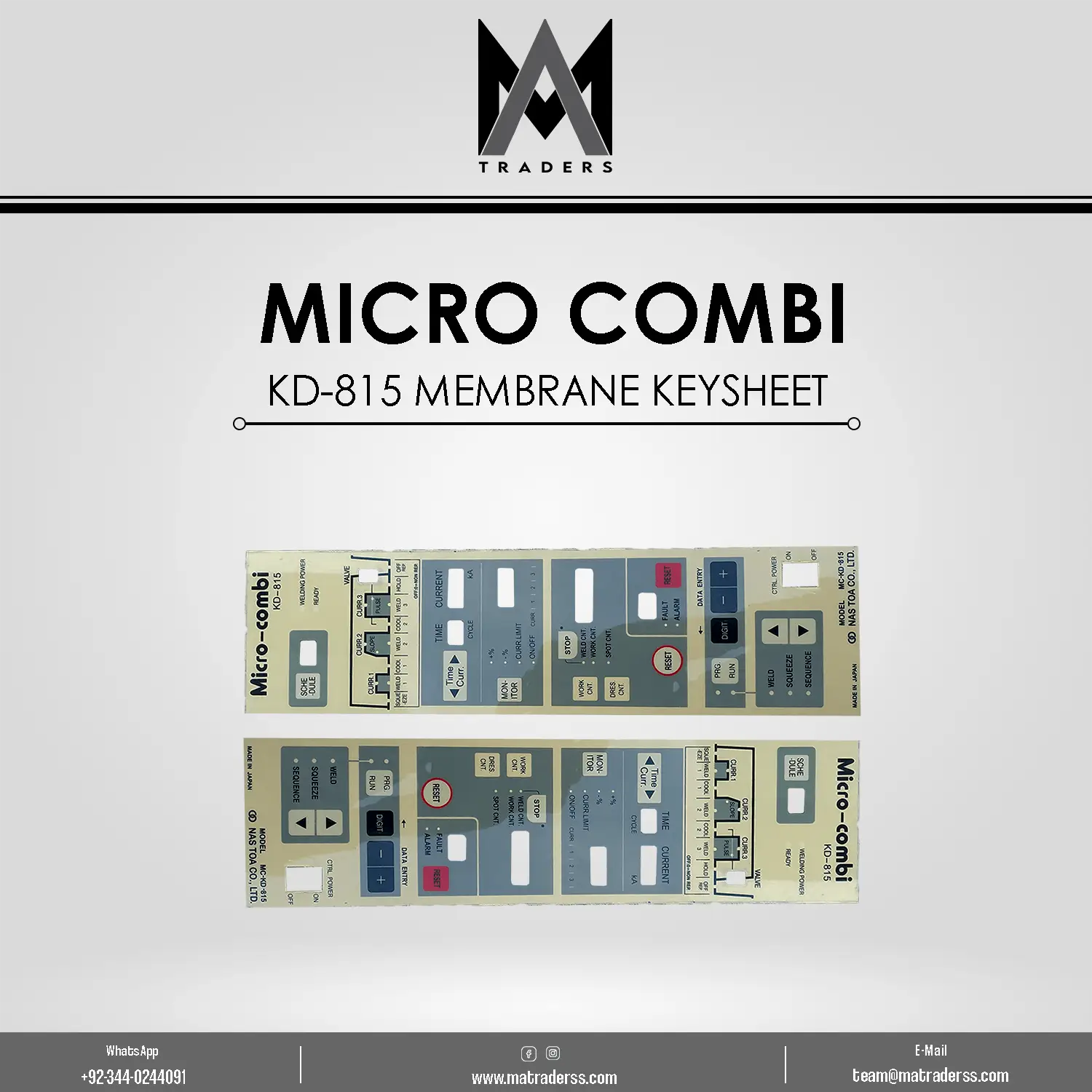

Micro Combi KD-815 Alpha Series Membrane Keysheet Panel
Front Panel Membrane Keypad Interface
Industrial HMI Keysheet Panels
Micro Combi KD-815 Control Systems
In Stock. Contact to confirm lead time and delivery schedule.

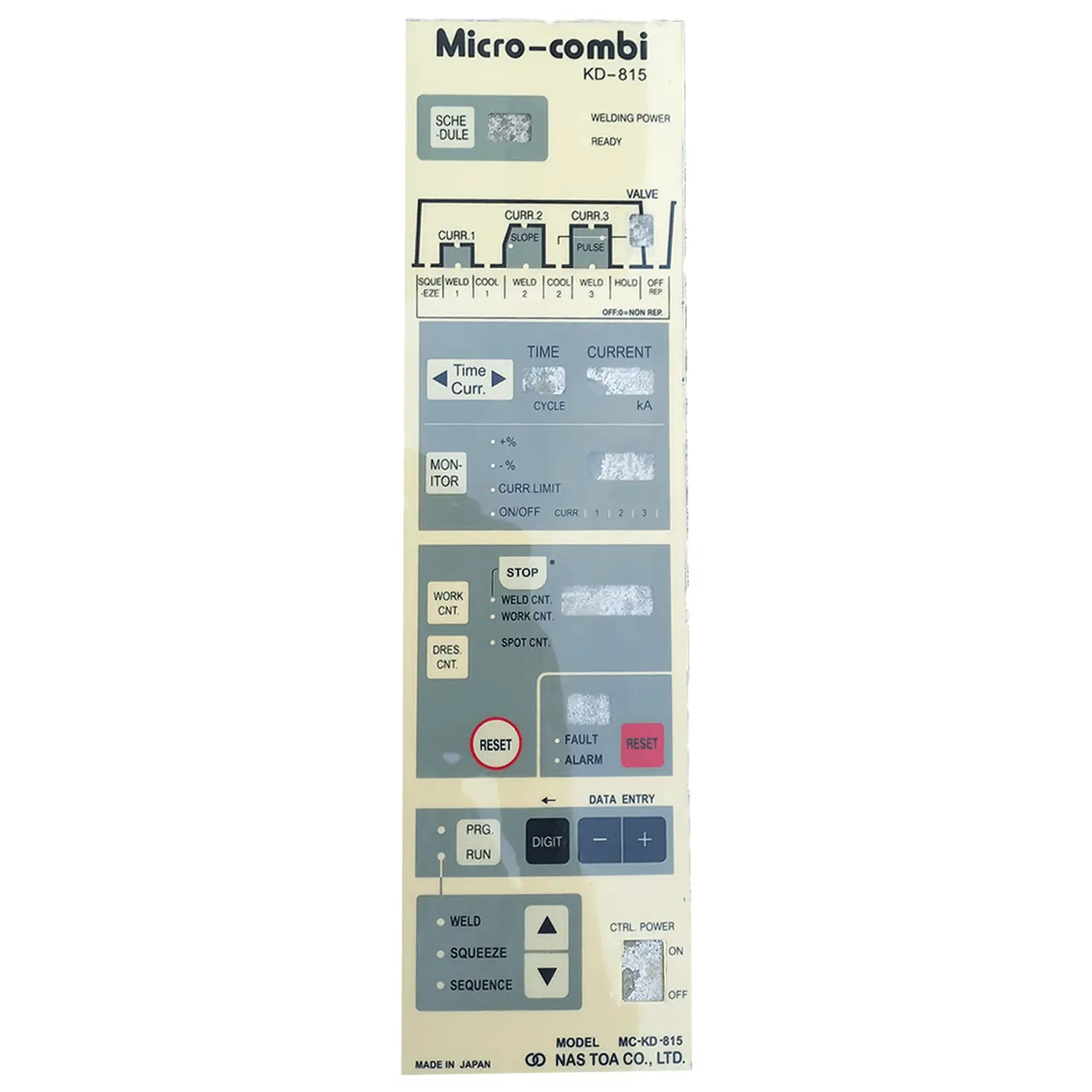

The Micro Combi KD-815 Alpha Series membrane keysheet panel is a front operator interface used to control and interact with KD-815 industrial control systems.
This component acts as the human machine interface layer between the machine controller and the operator. Through tactile membrane keys, operators can input commands, adjust machine settings, and monitor operational processes.
Membrane keysheet panels are widely used in industrial automation equipment because they protect internal electronics while providing a sealed interface for machine operation. The KD-815 panel maintains the original key layout used in Micro Combi control systems, allowing direct replacement of worn or damaged panels.
| Specification | Details |
|---|---|
| Product Type | Membrane Keysheet Panel |
| Model Compatibility | Micro Combi KD-815 Control Systems |
| Interface Type | Tactile Membrane Keypad |
| Installation Method | Adhesive-backed or OEM frame mounting |
| Environmental Protection | Dust and splash resistant surface |
| Panel Function | Operator input interface for controller systems |
The membrane panel is manufactured using industrial-grade materials designed to withstand continuous use in manufacturing environments.
The sealed membrane construction prevents dust, oil, and light moisture from reaching the controller interface, helping protect internal electronic components.
The membrane keys provide tactile feedback when pressed, allowing operators to confirm commands during machine operation.
The keysheet follows the same layout and labeling used in the Micro Combi KD-815 control system, ensuring accurate button alignment and functional compatibility.
The panel can be installed quickly using adhesive backing or an OEM-style frame fitment without requiring electrical modification.
Membrane keysheet panels function as the physical user interface for machine control systems.
During operation:
The operator presses a membrane key on the control panel.
The membrane layer activates a contact beneath the key.
The signal is transmitted to the control system.
The controller performs the selected function or command.
This interface allows operators to control machine parameters while protecting the underlying electronics.
Used as an operator interface for machine setup, control commands, and safety functions.
Membrane panels are used on control systems to manage automated processes in production lines.
Robotic control systems use HMI panels for configuration, manual override, and maintenance tasks.
Operators use membrane interface panels to monitor machine status and adjust process parameters.
This membrane keysheet panel is designed specifically for:
Micro Combi KD-815 control systems
Always verify the controller model before installation to ensure correct fitment.
Carefully remove the damaged or worn keysheet from the controller front panel.
Ensure the mounting surface is clean and free from dust, adhesive residue, or oil contamination.
Align the new keysheet panel with the controller interface and press firmly to secure the adhesive backing or frame mount.
This product includes only the membrane keysheet panel.
The following components are not included:
KD-815 control unit
internal electronic circuitry
controller housing
The panel is designed as a replacement interface component for KD-815 systems.
No. This product is the membrane interface panel used on the front of the KD-815 control system.
Yes. Most installations require only basic surface preparation before applying the adhesive-backed panel.
Yes. The sealed membrane surface resists dust, oil, and light moisture commonly present in industrial production environments.
A membrane keysheet panel allows operators to input commands into a machine controller while protecting internal electronic components from environmental contamination.
Replacing a damaged or worn interface panel provides several operational advantages:
restores clear control labeling
improves operator input accuracy
protects controller electronics
reduces downtime caused by faulty interface buttons
Maintaining a functional HMI panel helps ensure safe and efficient operation of industrial control systems.
