MITSUBISHI MR-J3USBCBL3M 3M USB SERVO CABLE

Mitsubishi MR-J3USBCBL3M USB Servo Cable | 3 Meter Interface Cable for MR-J3 Servo Amplifiers

Product Name

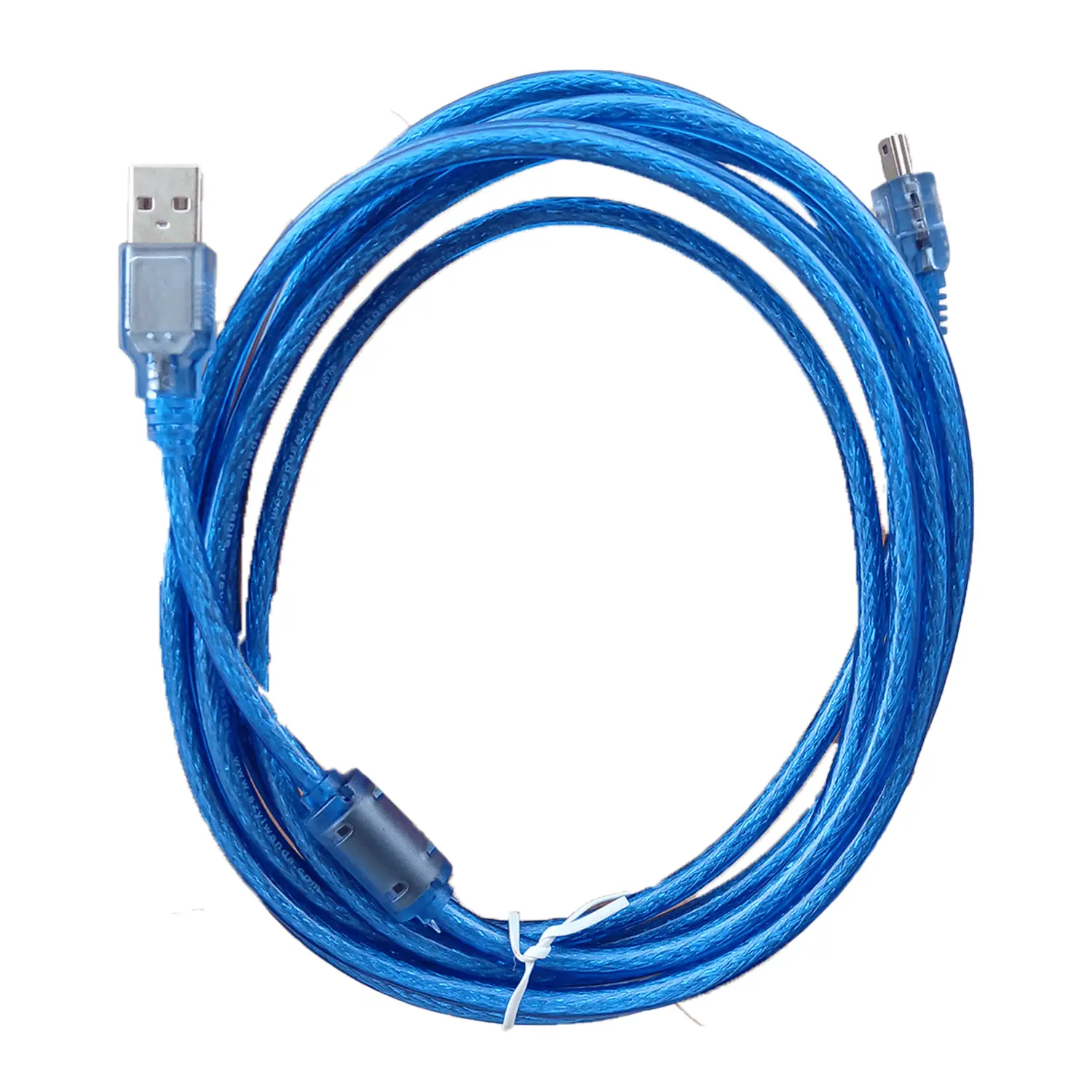

Mitsubishi MR-J3USBCBL3M USB Servo Cable

Part Number

MR-J3USBCBL3M

Product Category

Servo Drive Accessories and USB Interface Cables

Cable Length

3 Meters

Compatibility

Mitsubishi MR-J3 Series Servo Amplifiers

Availability

In Stock. Contact to confirm lead time and shipping details.

What is the Mitsubishi MR-J3USBCBL3M USB Servo Cable

MR-J3USBCBL3M is a USB communication cable used to connect a computer to Mitsubishi MR-J3 series servo amplifiers for configuration, diagnostics, and parameter tuning.

This cable allows engineers and technicians to communicate directly with the servo amplifier using Mitsubishi motion control software such as MELSOFT MR Configurator.

Through this connection, users can adjust servo parameters, monitor operational data, perform firmware updates, and diagnose system issues within Mitsubishi motion control systems.

The cable is specifically designed for MR-J3 servo amplifiers and provides stable data communication between the drive and the configuration software.

Technical Specifications

Key Functional Features

Direct USB Communication

The cable connects a PC or laptop directly to a Mitsubishi MR-J3 servo amplifier, allowing engineers to configure drive parameters through software tools.

3 Meter Cable Length

A three-meter cable provides sufficient reach for connecting service laptops to installed servo drives in industrial cabinets or machine enclosures.

Plug and Play Operation

The cable works with Mitsubishi configuration tools and does not require additional external power sources.

Shielded Cable Construction

The shielded design reduces electrical interference and maintains stable communication between the computer and the servo drive.

OEM Compatibility

The cable is designed specifically for Mitsubishi MR-J3 servo amplifier systems, ensuring reliable communication with supported motion control software.

How Servo Communication Cables Are Used

Servo communication cables allow technicians to connect programming software to a servo amplifier.

During configuration:

1. The cable connects the computer USB port to the servo amplifier interface.

2. Configuration software communicates with the amplifier.

3. Engineers can adjust parameters such as torque limits, acceleration, and positioning behavior.

4. Diagnostic data from the servo drive can be monitored in real time.

This process helps maintain optimal servo performance in motion control systems.

Typical Applications

Servo Parameter Configuration

Engineers use the cable to configure servo drive parameters during machine setup or commissioning.

Servo Diagnostics and Maintenance

Maintenance technicians connect the cable to analyze alarms, error codes, and performance data.

Firmware Updates

The cable enables firmware updates for servo amplifiers using Mitsubishi configuration software.

Industrial Automation Maintenance

System integrators and service engineers use the cable during machine installation and troubleshooting.

System Compatibility

Supported Servo Amplifiers

This cable is designed for use with:

• Mitsubishi MR-J3 servo amplifiers

Supported Software

The cable works with Mitsubishi motion control software including:

• MELSOFT MR Configurator

Compatibility should be verified according to the specific servo system configuration.

Frequently Asked Questions

Is the MR-J3USBCBL3M an original Mitsubishi cable

Yes. The MR-J3USBCBL3M is a genuine cable designed for Mitsubishi MR-J3 servo amplifier communication.

Can this cable be used with MR-J2 or MR-J4 servo amplifiers

No. This cable is specifically designed for MR-J3 series servo amplifiers and may not be compatible with other Mitsubishi servo models.

Does the cable require special drivers

The cable works with Mitsubishi configuration software such as MELSOFT MR Configurator and typically does not require additional drivers.

What is the primary purpose of this cable

The cable allows engineers to configure, monitor, and diagnose Mitsubishi MR-J3 servo drives through a computer interface.

Industrial Use Benefits

Using the correct communication cable provides several operational advantages:

• reliable parameter configuration

• accurate servo diagnostics

• faster commissioning of servo systems

• stable communication between computer and servo amplifier

These benefits help maintain efficient operation in CNC machines and industrial automation systems.
