TOSOKU HC1-15 Handy Manual Pulse Generator
HC1-15
TOSOKU
CNC Accessories and Manual Pulse Generators (MPG)
New
In Stock. Ships worldwide.

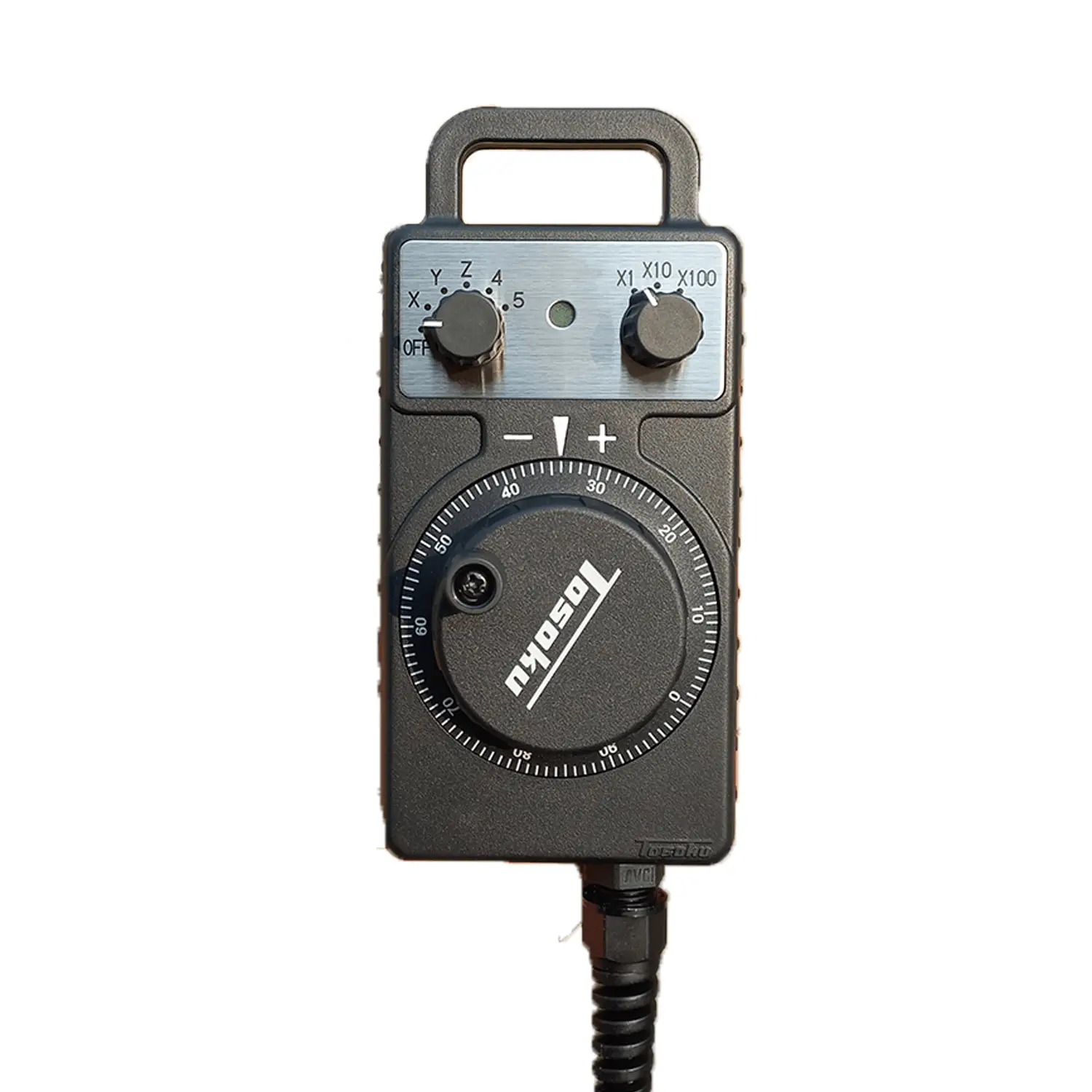

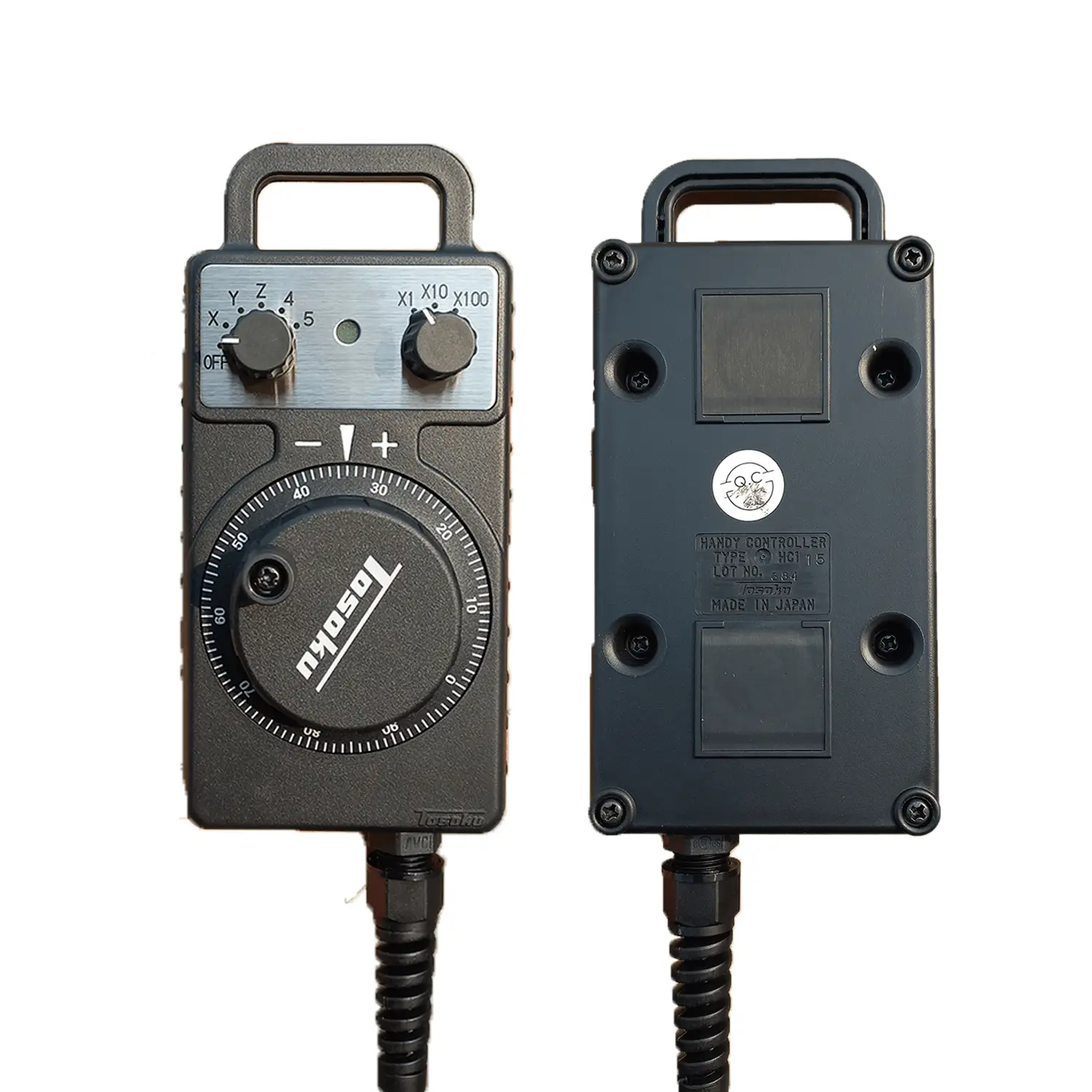

HC1-15 is a handheld manual pulse generator used to control CNC machine axis movement through manual input from an operator.
Manual pulse generators, commonly called MPG handwheels, allow CNC operators to move machine axes incrementally during machine setup, calibration, and manual positioning tasks.
The TOSOKU HC1-15 converts rotary movement from the handwheel into electrical pulses that are transmitted to the CNC control system. Each pulse represents a controlled movement increment along the selected axis.
This device is commonly used on CNC milling machines, CNC lathes, EDM machines, and automated manufacturing equipment where precise manual positioning is required.
| Specification | Details |
|---|---|
| Model | HC1-15 |
| Device Type | Manual Pulse Generator (MPG) |
| Brand | TOSOKU |
| Pulse Output | 100 Pulses per Revolution |
| Axis Selection | X, Y, Z, A (varies by configuration) |
| Pulse Multiplier | x1, x10, x100 selectable |
| Housing Material | Industrial ABS |
| Mounting Type | Handheld with magnetic or bracket options |
| Cable Length | Typically 3 to 5 meters depending on configuration |
The MPG produces 100 pulses per revolution, allowing precise incremental movement of CNC machine axes during manual control.
The integrated selector switch allows the operator to choose which axis will respond to handwheel input.
Selectable multipliers such as x1, x10, and x100 allow operators to control the speed and scale of axis movement.
The rotary dial provides smooth detent-based feedback that allows precise manual positioning.
The impact-resistant ABS housing protects the internal encoder and electronics from mechanical wear and industrial contaminants.
Manual pulse generators convert rotary motion into electrical signals used by CNC control systems.
During operation:
The operator rotates the handwheel.
The encoder inside the MPG generates electrical pulses.
Each pulse is transmitted to the CNC controller.
The CNC controller moves the selected machine axis based on the pulse input.
This allows operators to move machine axes precisely during setup and manual operations.
Operators use MPGs to manually jog machine axes during setup and tool positioning.
Manual pulse generators help align parts and adjust tool positions before machining operations.
EDM operators use MPGs to control electrode positioning with high precision.
Large CNC machines use handwheel control for calibration and axis alignment.
The TOSOKU HC1-15 manual pulse generator is compatible with many CNC control systems when connected with the appropriate wiring configuration.
Common compatible systems include:
FANUC CNC controllers
Mitsubishi CNC systems
Siemens CNC controls
other industrial CNC platforms supporting MPG input
Compatibility should be verified according to the machine wiring configuration and control interface.
Yes. The HC1-15 is commonly used with FANUC, Mitsubishi, Siemens, and other CNC control systems that support manual pulse generator input.
The device produces 100 pulses per revolution, which allows accurate incremental axis control.
The multiplier switch changes the movement scale of the machine axis. For example, x1 provides very fine movement while x100 allows faster axis movement.
Different models within the HC1 series may vary in pulse resolution, wiring configuration, and control switch layout.
Using a manual pulse generator provides several operational advantages:
precise manual axis control
improved machine setup accuracy
easier tool alignment and positioning
enhanced operator control during calibration
These benefits help improve machining accuracy and reduce setup time.
